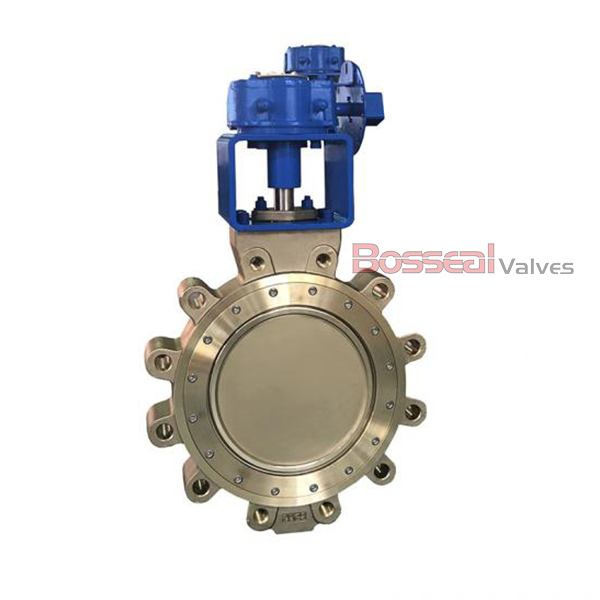

Monel K500 Stem Butterfly Valve, CL 150, 32 Inch, C95800
Model Number: 1862343
Key Specifications / Features
As an EN 593 butterfly valve manufacturer, we offer API 609 Category B valves featuring a double offset design. Our 32-inch, Class 150 LB valves are constructed from ASTM B148 C95800 material and come with an RPTFE seat and a Monel K500 stem. Designed with lug ends, these high-performance valves are ideal for various applications, providing reliable sealing and efficient operation.
Detail Information
API 609 Butterfly Valve, ASTM B148 C95800 Body, 32 Inch, 150 LB, RPTFE Seated.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
Valve Description
| 1862343 High-Performance Butterfly Valve | |
| Design Standard: | API 609 Category B, EN 593 |
| Body Material: | ASTM B148 C95800, ASTM A216 WCB, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A. |
| Nominal Size: | 32 Inch |
| Nominal Class: | Class 150 LB, PN20 |
| Structure: | Double Offset, Double Eccentric |
| Seat Type: | Soft Seat |
| Face to Face: | API 609, EN 593 |
| Operation: | Gear |
| Seat: | RPTFE, PPL |
| End Connection: | Lug |
| Test and Inspection: | API 598, API 609 |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
| Key Features: | Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available. |
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2-48 Inch (DN15-DN1200)
Pressure Range: Class 150 - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe Design.
