ISO 17292 Floating Ball Valve, ASTM A105, 3/4 IN, 800 LB, SW

This is a lever-operated, SW end floating ball valve with a 3/4 inch size and 800 LB rating. It is made with an A105 body and meets ISO 17292 and NACE MR0175 standards.

3/4 inch, 800 LB, SW End Floating Ball Valve, ISO 17292, A105 Body, Lever Operated, NACE MR0175

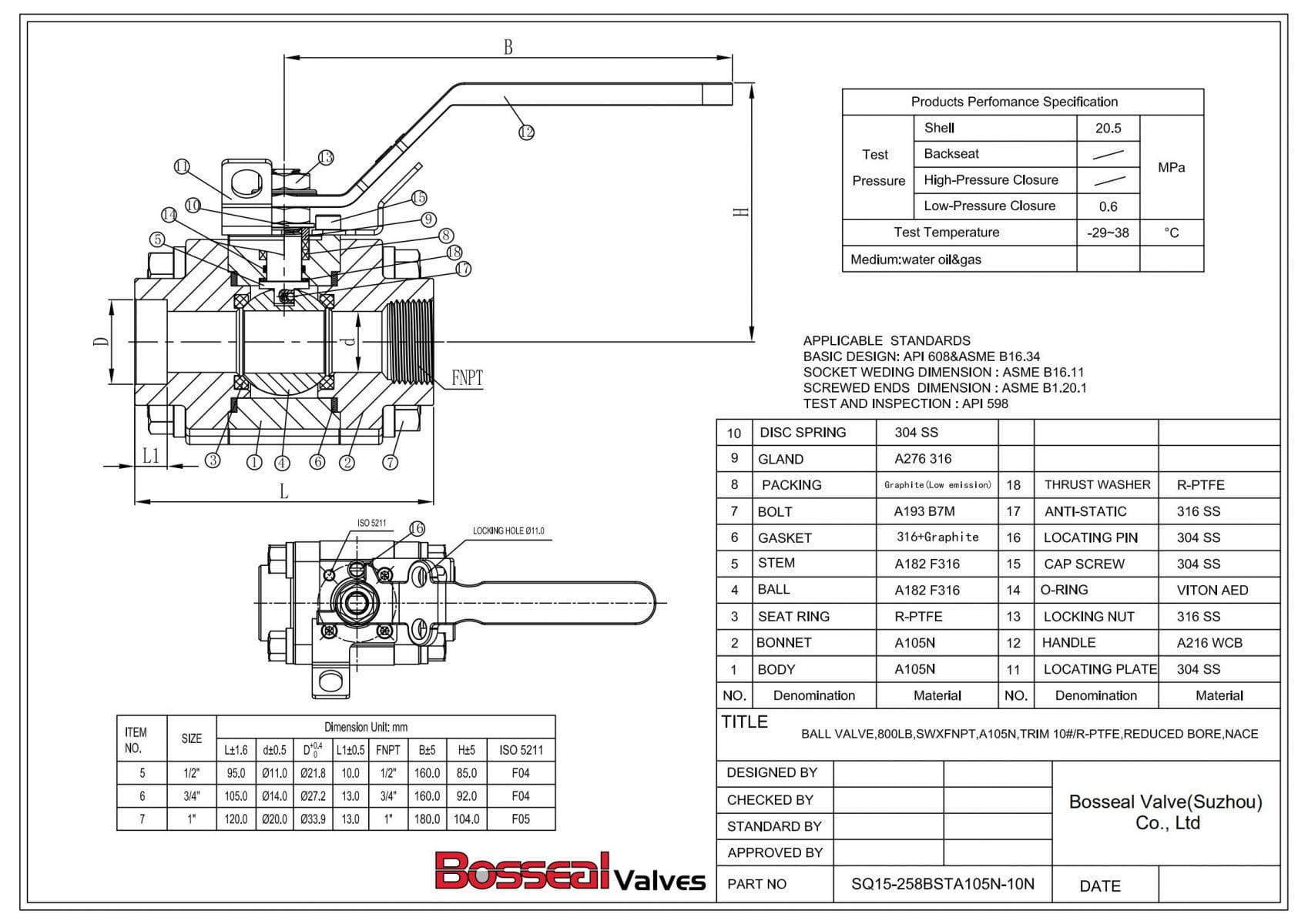

Valve Description:
1854001 Floating Ball Valve 3/4BB8SA105
Design Standard: API 608, ISO 17292, API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat, Extended Bonnet
Nominal size: 3/4 Inch
Nominal class: 800LB
Bore Type: Full Bore
End Connection: SW
Operation: Lever Lockable
Body Material: ASTM A105
Trim Material: ASTM A182 F316, RPTFE
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Anti-static Device, Fire Safe, Anti-Blowout Stem, Locking Device, Nace

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 2 Inch (DN15 - DN50)
Pressure range: Class 150 - 2500 LB
End connection: SW, NPT
Working temperature: -29℃ - +150℃
Operation: Lever, Spring Return Lever, Pneumatic Actuator
