Inconel Dual Plate Check Valve, 4 Inch, 300 LB, A494 CW6MC

This Inconel Dual Plate Check Valve is designed in accordance with API 594 standards and has a nominal diameter of 4 inches, a pressure rating of 300 LB, and is constructed from A494 CW6MC material. It features a Viton seat for high-temperature applications. This valve is a reliable choice for various applications where flow reversal prevention is required.

Inconel Dual Plate Check Valve, API 594, 4 Inch, 300 LB, A494 CW6MC, Viton Seat

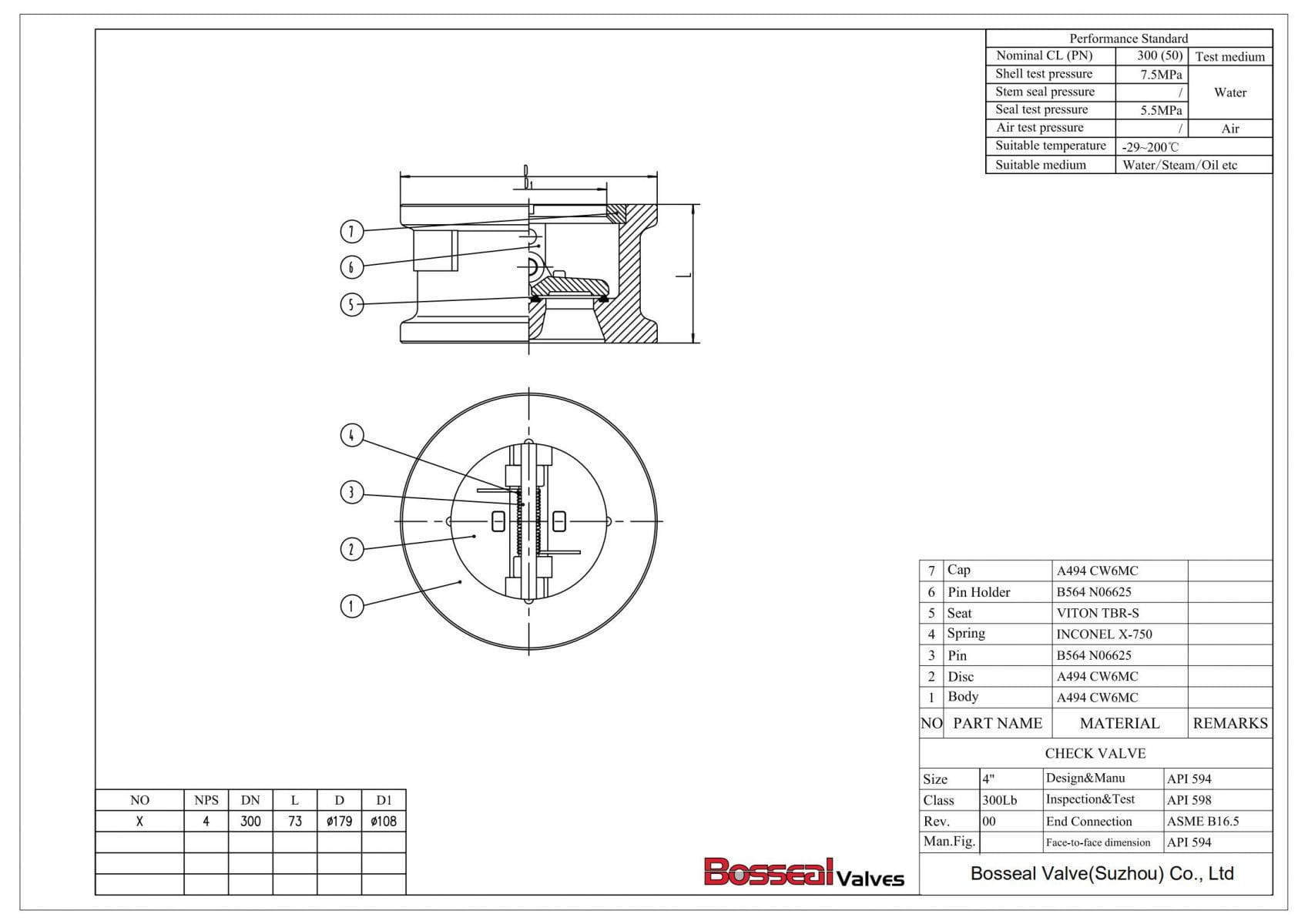

Valve Description:
1842002 Dual Plate Check Valve 4SBS3WINC
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 4 Inch
Nominal class: 300 LB
End Connection: Wafer-RF
Operation: /
Body Material: ASTM A494 CW6MC
Trim Material: A494 CW6MC disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length, High Anti-corrosion material

Product Range:
Body material: Inconel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /
