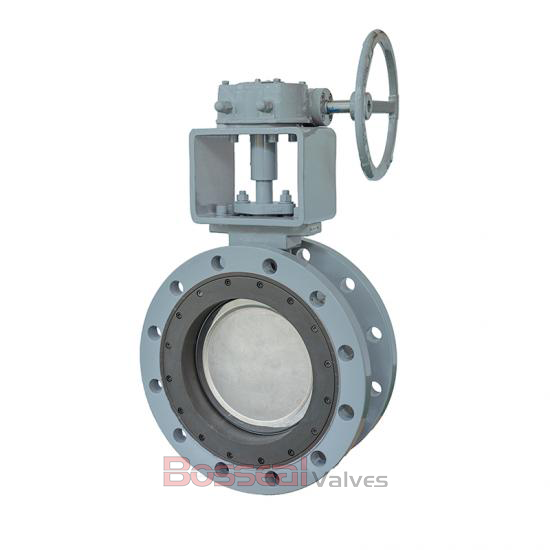

High Performance Butterfly Valves, C95800, 3 Inch, CL300 LB

Name: High Performance Butterfly Valves, C95800, 3 Inch, CL300 LB
SKU: BTV-187302024
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

We are a trusted provider of high-performance butterfly valves engineered to meet API 609 and BS EN 593 design standards. This 3-inch (DN80) valve features a rugged body and disc crafted from corrosion-resistant aluminum bronze ASTM B148 C95800, making it ideal for harsh marine and industrial environments. Rated for Class 300 LB and PN50 pressure, it is built for reliable operation under demanding conditions. The valve is equipped with a high-strength Monel K500 stem, ensuring durability and extended service life. Perfect for applications requiring robust flow control and superior resistance to corrosive media.

Request a quote

Detail Information

Valve Description:
187302024 High Performance Butterfly Valve
Design Standard: API 609 Cat B, BS EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 3 Inch, DN80
Nominal Class: 300 LB, PN50
Seat Type: Soft Seat
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2-48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/Lug/Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
