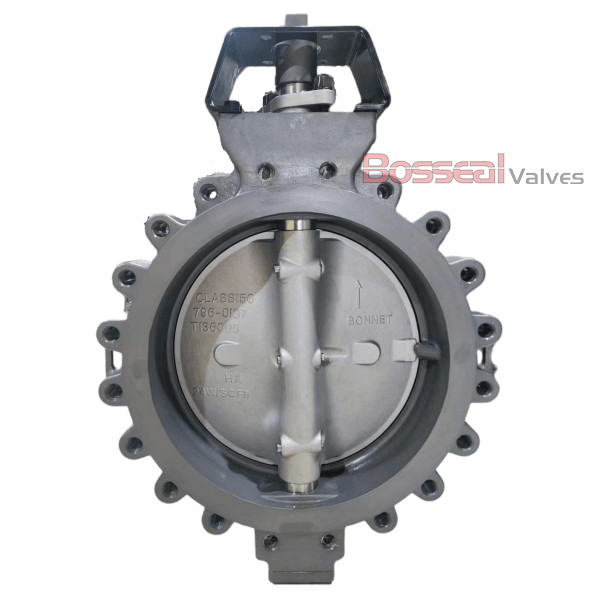

High-Performance Butterfly Valve, A351 CF8M, 6 IN, CL 300
Model Number: 1862079
Key Specifications / Features
As a supplier of ASTM A351 CF8M butterfly valves, we offer double eccentric valves that meet API 609 Category B standards. Available in a 6-inch size with a 300 LB pressure rating, these valves are crafted from ASTM A351 CF8M stainless steel for superior durability and corrosion resistance. Featuring a 17-4PH stainless steel stem and soft seat, they deliver reliable sealing and long-lasting performance. The lug end connection ensures secure installation, making these valves ideal for demanding industrial applications that require precision control and high performance.
Detail Information
Stainless Steel Butterfly Valve, API 609 Category B, 6 Inch/DN150, 300 LB, Gear Operation.
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 6 Inch, DN150
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM B148 C95800, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Lug
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
1862079 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal Size: 6 Inch, DN150
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8M, ASTM A351 CF8, ASTM B148 C95800, ASTM A890 4A, ASTM A216 WCB, ASTM A890 5A, Titanium.
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Lug
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
