Gear Operated Gate Valve, API 600, 10 Inch, 150 LB, WCB

Name: Gear Operated Gate Valve, API 600, 10 Inch, 150 LB, WCB
SKU: 10G1RWCB08
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

This Gear Operated Gate Valve is designed to meet API 600 standards with an OS & Y configuration. It has a 10-inch size, 150 LB pressure rating, RF connection, and WCB body material with 1Cr13+STL trim. Ideal for a wide range of industrial applications.

Request a quote

Detail Information

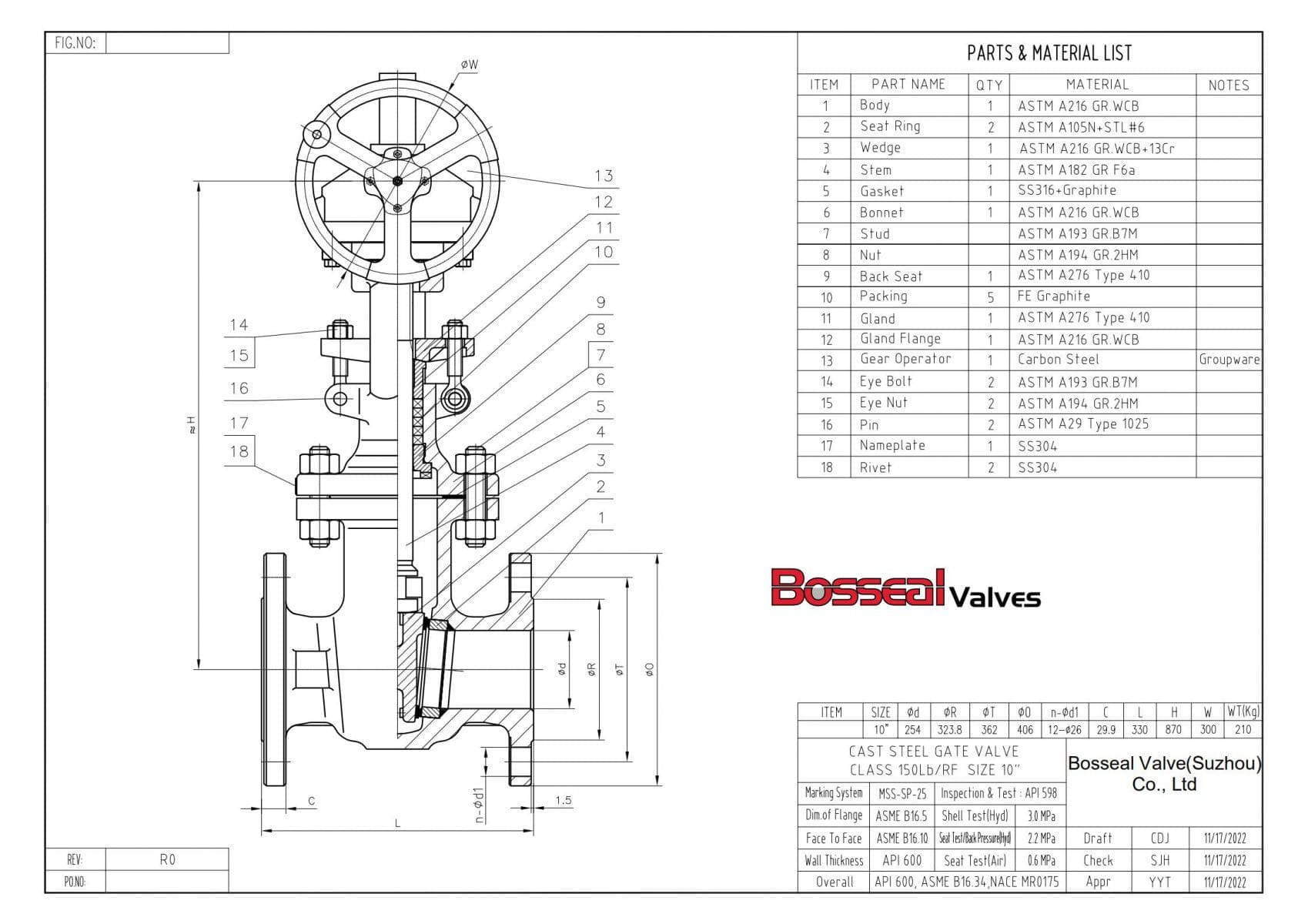

Gear Operated Gate Valve, API 600, OS & Y, 10 Inch, 150 LB, RF, WCB Body, 1Cr13+STL Trim

Valve Description:
1821010 Gate Valve 10G1RWCB08
Design Standard: API 600
Structure: Bolted Bonnet
Nominal size: 10 Inch
Nominal class: 150 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Gear Operation
Body Material: ASTM A216 WCB
Trim Material: 1Cr13+STL, No.8
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, NACE MR0175

Product Range:
Body material: Carbon Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
