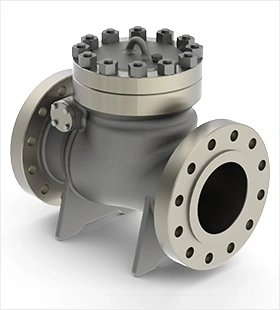

Full Opening Check Valve, 28 IN, CL 600 LB, PN100, A216 WCB
Model Number: 1841076
Key Specifications / Features
The 1841076 Swing Check Valve is engineered to API 6D, BS 1868, and API 594 standards, ensuring reliability in industrial applications. This Class 600 LB valve features a 28-inch nominal size and a bolted bonnet for secure operation. Constructed from ASTM A216 WCB carbon steel, it offers robustness and durability. Key features include a full opening design and optional gear operation, supported by trim materials such as ASTM A182 F6A, F304, F316, F51, F53, and F55. The valve supports both standard bore (BS 1868, API 594) and full bore (API 6D) configurations, with RF flanged end connections for ease of installation. Tested to API 598 standards, it meets ASME B16.10 face-to-face dimensions, ensuring optimal performance and longevity.
Detail Information
API 6D Swing Check Valve, 28 Inch, Class 600 LB, Full Opening, Carbon Steel, ASTM A216 WCB Body with Trim 8.
Valve Description
1841076 Swing Check Valve
Key Features: Full Opening Design Available, Bolted Bonnet, Operation Gear Design Available
Design Standard: API 6D, BS 1868, API 594
Body Material: ASTM A216 WCB, Stainless Steel, ASTM A351 CF8, CF8M, C95800 Alloy, ASTM A352 LCB, ASTM A995 4A, 5A.
Nominal Size: 28 Inch, DN700
Nominal Class: 600 LB, PN100
Structure: Bolted Bonnet
Bore Type: Standard Bore(BS 1868, API 594), Full Bore(API 6D)
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: Flanged RF
Operation: Gear
Valve Description
1841076 Swing Check Valve
Key Features: Full Opening Design Available, Bolted Bonnet, Operation Gear Design Available
Design Standard: API 6D, BS 1868, API 594
Body Material: ASTM A216 WCB, Stainless Steel, ASTM A351 CF8, CF8M, C95800 Alloy, ASTM A352 LCB, ASTM A995 4A, 5A.
Nominal Size: 28 Inch, DN700
Nominal Class: 600 LB, PN100
Structure: Bolted Bonnet
Bore Type: Standard Bore(BS 1868, API 594), Full Bore(API 6D)
Trim Material: ASTM A182 F6A, F304, F316, F51, F53, F55
Face to Face: ASME B16.10
Test and Inspection: API 598
End Connection: Flanged RF
Operation: Gear
| Product Offering | |
| Normal Diameter: | 1/2-48 Inch (DN15-DN1200) |
| Pressure Range: | Class 150-2500 LB |
| Body Materials: | Carbon Steel, Stainless Steel, Alloy Steel, Aluminium-Bronze |
| Operation: | Not Applicable |
| Working temperature: | -196°C - +450°C |
| End Connections: | Raised Face (RF), Ring-Type Joint (RTJ), Butt Weld (BW). |
