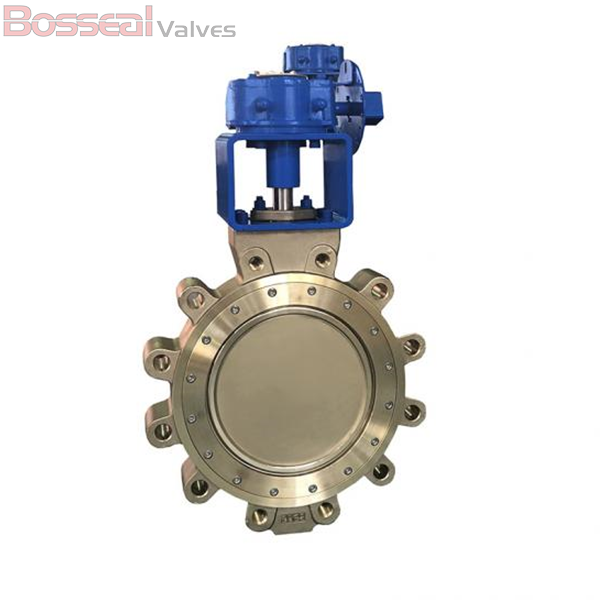

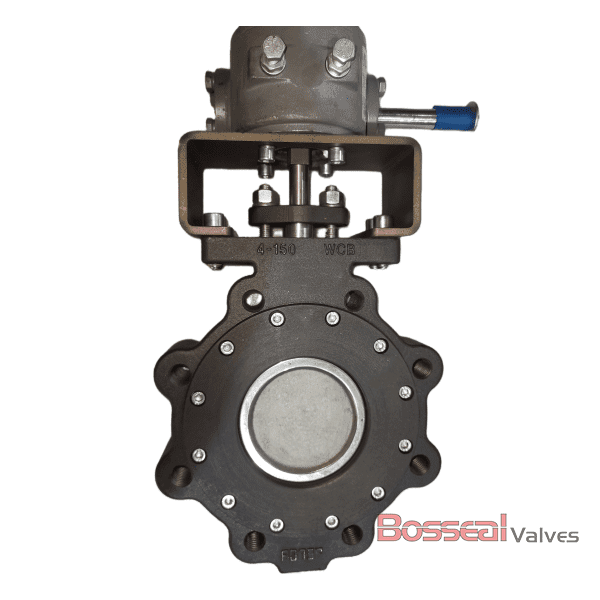

EN 593 Wafer Butterfly Valve, ASTM A216 WCB, CL300, 18 IN
Model Number: 1862316
Key Specifications / Features
As a trusted supplier of API 609 Category B butterfly valves, we offer high-performance solutions built to EN 593 standards. Our 18-inch valves feature a double offset design with a durable Monel K500 stem and A216 WCB body, ensuring superior strength and corrosion resistance. Rated at Class 300 LB, these valves come with a soft RPTFE seat for tight sealing and reduced leakage. With wafer ends for easy installation, they are ideal for frequent open/close operations in isolation and regulating applications in pipelines.
Detail Information
API 609 High-Performance Butterfly Valve, 18 Inch/DN450, CL 300 LB, RPTFE Seat.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, Titanium Alloy, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Normal Diameter: 1/2 - 48 Inch (DN15-DN1200)
Pressure Range: CL 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Valve Description
1862316 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A216 WCB, Titanium Alloy, ASTM A890 5A, ASTM A351 CF8M, ASTM A351 CF8, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Wafer
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: Titanium, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium.Normal Diameter: 1/2 - 48 Inch (DN15-DN1200)
Pressure Range: CL 150 LB - 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
