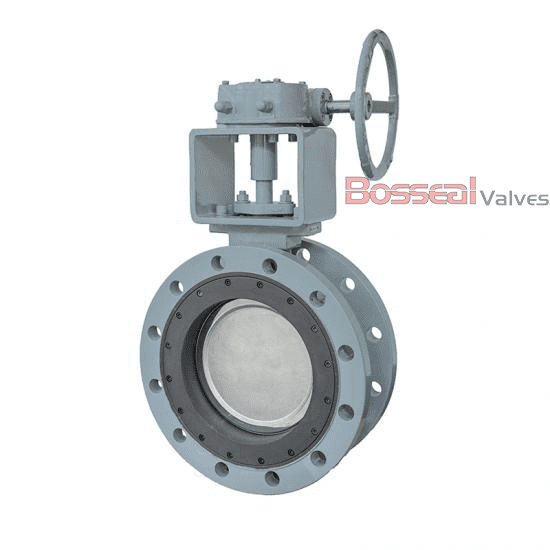

EN 593 Stainless Steel Butterfly Valve, CF8M, CL300, 6 IN
Key Specifications / Features
As a specialized fabricator of 17-4PH stem butterfly valves, we offer high-performance valves designed to meet EN 593 and API 609 Category B standards. Our 6-inch (DN150), Class 300 LB, PN50 valves feature a double offset design with a robust CF8M stainless steel body. Equipped with double flanged ends, these valves provide reliable sealing and smooth operation in a variety of industrial applications. Engineered for durability and efficiency, they are built to handle demanding conditions while ensuring long service life and consistent performance.
Request a quote
Detail Information
On this page
EN 593 High-Performance Butterfly Valve, Double Offset, 6 Inches/DN150, 300 LB, 17-4PH Stem.
Design Standard: EN 593, API 609 Category B
Nominal Size: 6 Inch, DN150
Nominal Class: Class 300 LBS, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, Titanium, ASTM A890 5A, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Structure: Double Offset, Double Eccentric
Key Features: Long working life for frequent operation (million cyclings), lower torque, replacement seat, tight sealing, excellent control characteristics, bi-directional sealing under full pressure, and fire-safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
Top Mounting: ISO 5211 Top Mounting Available
Valve Description
1862268 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Nominal Size: 6 Inch, DN150
Nominal Class: Class 300 LBS, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, Titanium, ASTM A890 5A, ASTM A890 4A, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Structure: Double Offset, Double Eccentric
Key Features: Long working life for frequent operation (million cyclings), lower torque, replacement seat, tight sealing, excellent control characteristics, bi-directional sealing under full pressure, and fire-safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
Top Mounting: ISO 5211 Top Mounting Available
