EN 593 Carbon Steel Butterfly Valve, CL150, 14IN, WCB, Wafer
Key Specifications / Features
As a leading manufacturer of double-offset butterfly valves in China, we specialize in producing high-performance valves that meet API 609 Category B and EN 593 standards. Our 14-inch valves are crafted from durable ASTM A216 WCB material and feature a double eccentric design for superior sealing performance. Rated at Class 150 LB, these valves are ideal for various industrial applications. The Monel K500 stem provides excellent corrosion resistance, while the wafer ends offer easy installation and maintenance. We are committed to delivering reliable valve solutions to meet your specific needs.
Request a quote
Detail Information
On this page

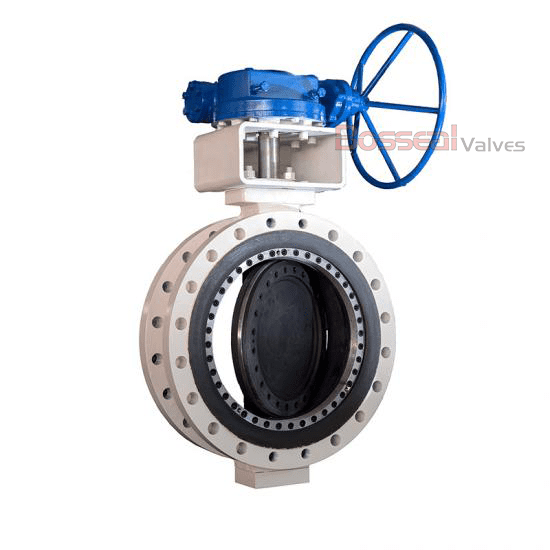

RPTFE Seated Butterfly Valve, Double Offset, 14 Inch/DN350, Class 150 LB, Gear Operation.
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A.
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LBS
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
Valve Description
1862293 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A.
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 5A, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LBS
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
