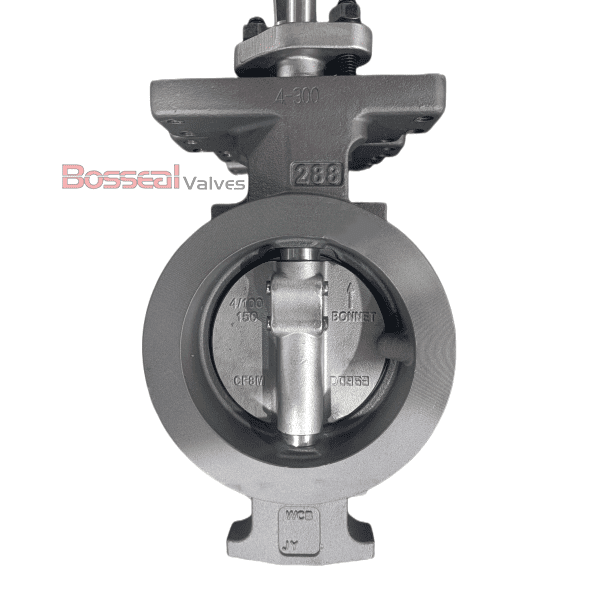

Duplex Stainless Steel Butterfly Valve, 5A, 18 IN, 300 LB
Model Number: 1862148
Key Specifications / Features
We are a specialized fabricator of ASTM A890 5A butterfly valves, designed for high performance and durability. Our valves adhere to EN 593 and API 609 Category B standards and feature a double offset design. Available in 18-inch size with a 300 LB rating, they include a 17-4PH stainless steel stem and double flanged ends. Engineered for long service life with frequent operations, these valves offer low torque, replaceable seats, tight sealing, excellent control, bi-directional sealing under full pressure, and optional fire-safe seats.
Detail Information
EN 593 High-Performance Butterfly Valve, Double Offset, 18 IN, 300 LB, Double Flanged End.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM A351 CF8M, ASTM A351 CF8, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
Valve Description
1862148 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 300 LB, PN50
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A890 5A, Titanium, ASTM A216 WCB, ASTM A890 4A, ASTM A351 CF8M, ASTM A351 CF8, ASTM B148 C95800.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C to +120°C (180°C for PPL seat)
