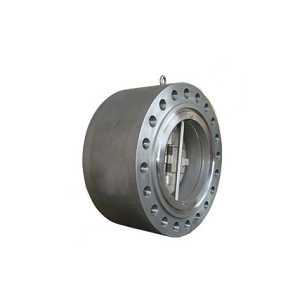

Ductle Iron Dual Plate Check Valve, DN150, PN16, API 594, Wafer
Model Number: 6SBS1WDI
Key Specifications / Features
Ductile Iron Dual Plate Check Valve Factory offers a high-quality valve with specifications including DN150, PN16, API 594, 6 Inch, Class 150 LB, Wafer style, DI Body, CF8M Disc, Viton Seat, Retainerless Design, and RF End connection.
Detail Information
Dual Plate Check Valve, DN150, PN16, Wafer, DI body, CF8M Disc, Viton Seat
Valve Description:
1842017 Dual Plate Check Valve 6SBS1WDI
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: DN150
Nominal class: PN16
End Connection: Wafer-RF
Operation: /
Body Material: Ductile Iron
Trim Material: A351 CF8M disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /
Valve Description:
1842017 Dual Plate Check Valve 6SBS1WDI
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: DN150
Nominal class: PN16
End Connection: Wafer-RF
Operation: /
Body Material: Ductile Iron
Trim Material: A351 CF8M disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, HIgh flow efficiency, Low noise, Short face-to-face length
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -46℃ - +200℃
Operation: /
