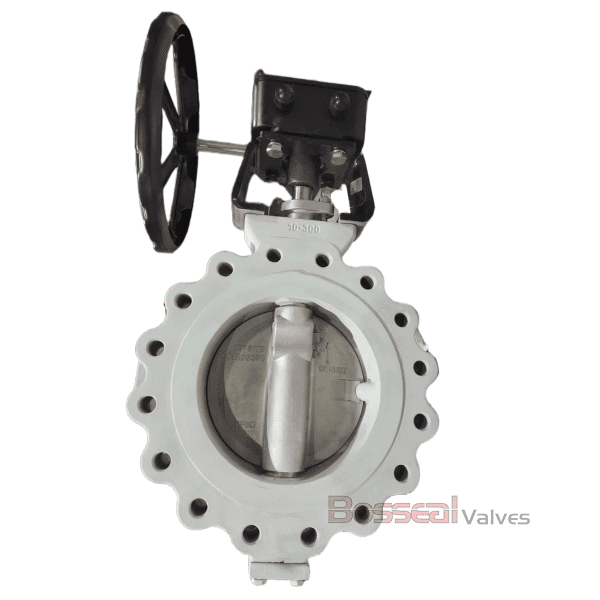

Double Offset CF8 Butterfly Valve, API 609, CL 300, 32IN
Model Number: 1862406
Key Specifications / Features
Our double-offset butterfly valves are engineered for exceptional performance and durability. Designed with a double eccentric configuration, they meet EN 593 and API 609 standards, ensuring precise control and tight sealing. With a 32-inch size, Class 300 LB pressure rating, and PN50 designation, these valves are ideal for demanding applications. Featuring a soft seat, Monel K500 stem, and replaceable seat design, they offer extended service life and lower operating torque, making them perfect for frequent operation with up to a million cycles of reliable performance.
Detail Information
Double Eccentric High-Performance Butterfly Valve, CF8 Body, 32-inch, RPTFE Seat.
Design Standard: EN 593, API 609 Category B
Nominal Size: 32 Inch, DN800
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8, Titanium, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A.
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Valve Description
1862406 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Nominal Size: 32 Inch, DN800
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A351 CF8, Titanium, ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A.
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
| Body Material: | Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium |
| Normal Diameter: | 1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: | CL 150-300 LB |
| End Connection: | Wafer, Lug, Flanged |
| Working Temperature: | -26°C - +120°C (180°C for PPL seat) |
| Operation: | Manual (lever, gear), Pneumatic Actuator, Motor Actuator |
