Double Offset Butterfly Valve, 10 Inch, 300 LB, WCB, API 609

Name: Double Offset Butterfly Valve, 10 Inch, 300 LB, WCB, API 609
Brand: www.bossealvalves.com
SKU: 10TB3LWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 10TB3LWCB

Key Specifications / Features

We Provide Double Offset Butterfly Valves, ASTM A216 WCB, 10 Inch, DN250, Class 300 LB, PN50, API 609 Cat B, LUG-RF End, Gear Operation, CF8M Disc.

Double Offset Butterfly Valves 10 Inch Butterfly Valve DN250 Butterfly Valve Class 300 LB Butterfly Valve PN50 Butterfly Valve Lug Butterfly Valve RF Butterfly Valve ASTM A216 WCB Butterfly Valve API 609 Cat B Butterfly Valve

Detail Information

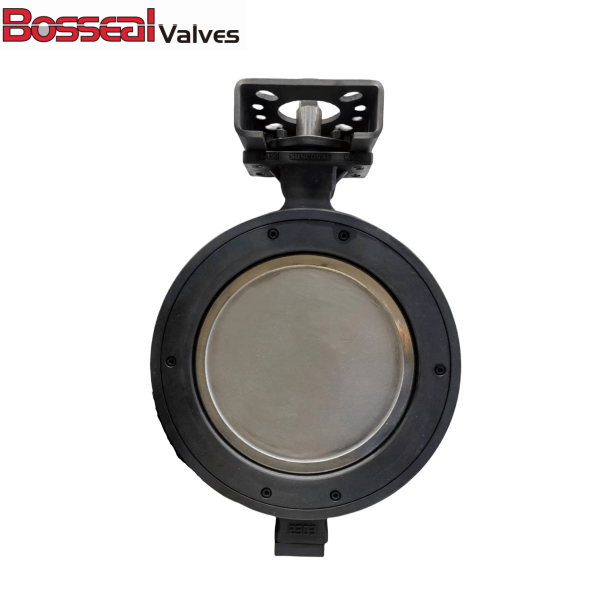

API 609 Cat B Double Offset Butterfly Valve, High Performance, 10inch, 300LB, LUG, WCB body, CF8M Disc, RPTFE seat

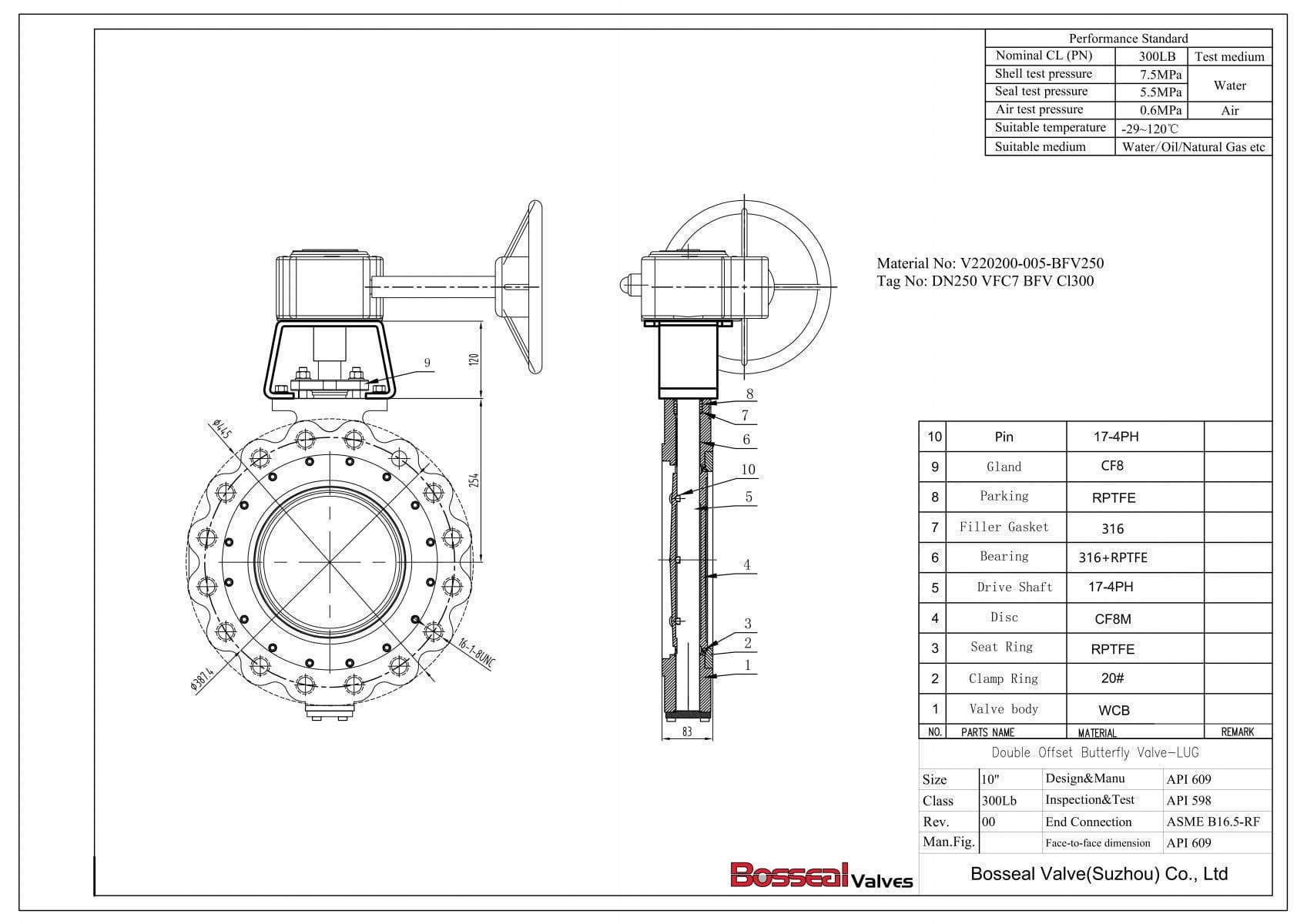

Valve Description:
Double Offset Butterfly Valve
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 10 Inch, DN250
Nominal class: 300 LB, PN50
End Connection: LUG-RF
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A351 CF8M disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequent opening/closing (million cyclings), Low torque, Replaceable seat, Tight sealing, Excellent control characteristics

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
