DIB-1 Trunnion Ball Valve, 16 Inch, 1500 LB, API 6D, RTJ, ASTM A105N
Model Number: 16BSP15JA105N
Key Specifications / Features
DIB-1 is your trusted supplier of high-quality ball valves. Our 16-inch valve, designed to meet industry standards, features DN400 size, 1500 LB pressure rating, and PN250 designation, and conforms to API 6D and ASTM A105N specifications. With F51 trim, three-piece construction, side entry design, bolted bonnet, DPE seat, and RTJ flanged connection, this valve ensures reliable performance. Operate it effortlessly with the gear operation mechanism. Choose DIB-1 for precision and excellence in ball valve solutions.
Detail Information

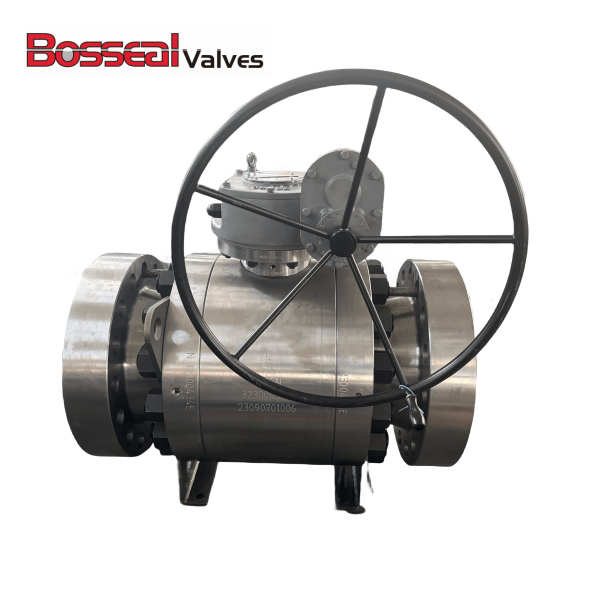

Trunnion Mounted Ball Valve, API 6D, 16 inch, 1500 LB, RTJ, A105N Body, F51 Trim, PEEK Seat, DPE Seats (DIB-1), Gear Operation
Valve Description:
1811058 Trunnion Mounted Ball Valve 16BSP15JA105N
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DIB-1
Nominal size: 16 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear Operation
Body Material: ASTM A105N
Trim Material: ASTM A182 F51, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DIB-1, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Valve Description:
1811058 Trunnion Mounted Ball Valve 16BSP15JA105N
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DIB-1
Nominal size: 16 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear Operation
Body Material: ASTM A105N
Trim Material: ASTM A182 F51, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DIB-1, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
