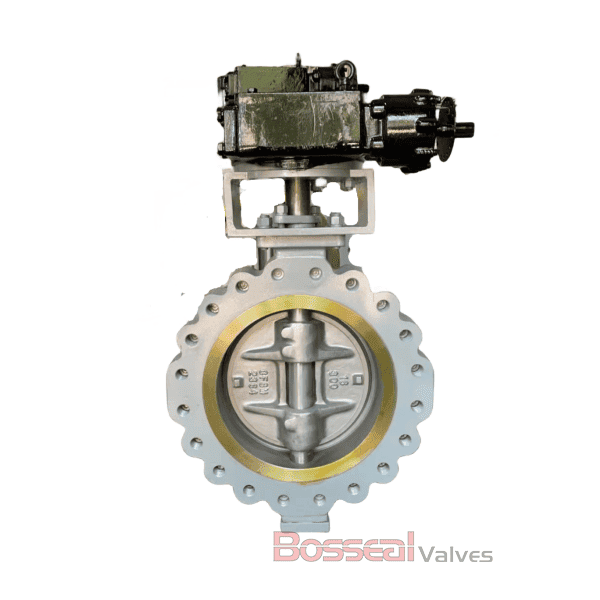

Carbon Steel A216 WCB Butterfly Valve, 24IN, CL300, API 609
Model Number: 1862402
Key Specifications / Features
As a trusted provider of API 609 Category B butterfly valves in China, we offer high-performance valves built to EN 593 standards. Our 24-inch double eccentric valves, constructed from carbon steel ASTM A216 WCB, are rated for 30 LB and feature an RPTFE seat for superior sealing. With flanged ends for easy installation, these valves offer Bosseal advantages such as zero leakage, low torque operation, long service life, low emissions, bi-directional sealing, and optional fire-safe features. Designed for demanding environments, they ensure reliable, efficient performance.
Detail Information
Double Eccentric Butterfly Valve, 24 Inch, 300 LB, WCB Body, RPTFE Seated.
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, Titanium.
Nominal Size: 24 Inch, DN600
Structure: Double Offset, Double Eccentric
Nominal Class: 300 LBS
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium.
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Valve Description
1862402 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Body Material: ASTM A216 WCB, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A351 CF8, ASTM A890 5A, Titanium.
Nominal Size: 24 Inch, DN600
Structure: Double Offset, Double Eccentric
Nominal Class: 300 LBS
Seat Type: Soft Seat
Face to Face: API 609, EN 593
Operation: Gear
Seat: RPTFE, PPL
End Connection: Double Flanged
Test and Inspection: API 598, API 609
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium.
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
