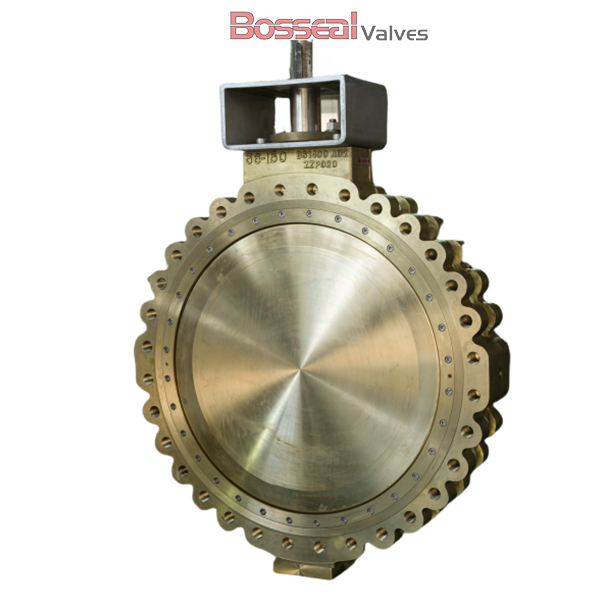

BS EN 593 Butterfly Valves, Bronze C95800, 2-1/2 Inch, CL150

As a leading aluminum bronze butterfly valve supplier from China, we provide reliable flow control solutions designed to BS EN 593 standards with a robust ASTM B148 C95800 body. Our 2-1/2 inch (DN65) valves are rated for Class 150 LB and PN20, featuring a soft seat for tight sealing and flanged ends for easy installation. These valves offer exceptional corrosion resistance and durability, making them ideal for demanding applications. We are committed to delivering top-quality valves with proven performance and reliability.

Valve Description:
187302002 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Body Material: ASTM B148 C95800
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: 150 LB, PN20
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Structure: Double Offset, Double Eccentric
Operation: Lever/ Gear
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminum Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer/Lug/Flanged
