Bolted Bonnet Gate Valve, A352 LCB, 14 IN, CL150, API 600
Model Number: 1821051
Key Specifications / Features
Our 14-inch gate valves, made from robust carbon steel ASTM A352 LCB, are designed for high performance and durability. With a DN350 size and Class 150 LB pressure rating, these valves feature a bolted bonnet for a secure, leak-proof seal. The RF flanged connections ensure easy installation, while the rising stem provides clear position indication. For ease of operation, the valve includes a non-rising handwheel. As a leading gate valve supplier from China, we offer precision-engineered valves tailored to meet demanding industrial applications.
Detail Information
Bolted Bonnet Gate Valve, ASTM A352 LCB, 14 Inch, DN350, 150 LB, RF Flanged.
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A352 LCB, ASTM A890 5A, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN16
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
Valve Description
1821051 Gate ValveDesign Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM A352 LCB, ASTM A890 5A, ASTM A351 CF8, ASTM A216 WCB, ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55
Nominal Size: 14 Inch, DN350
Nominal Class: Class 150 LB, PN16
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features: OS&Y, Screwed-in Back Seat, Rising Stem, Non-rising Handwheel, Flexible Wedge, Low Emission Design.
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum BronzeNormal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
Operation: Handwheel/Gear/Motor
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
Bolted Bonnet Gate Valve

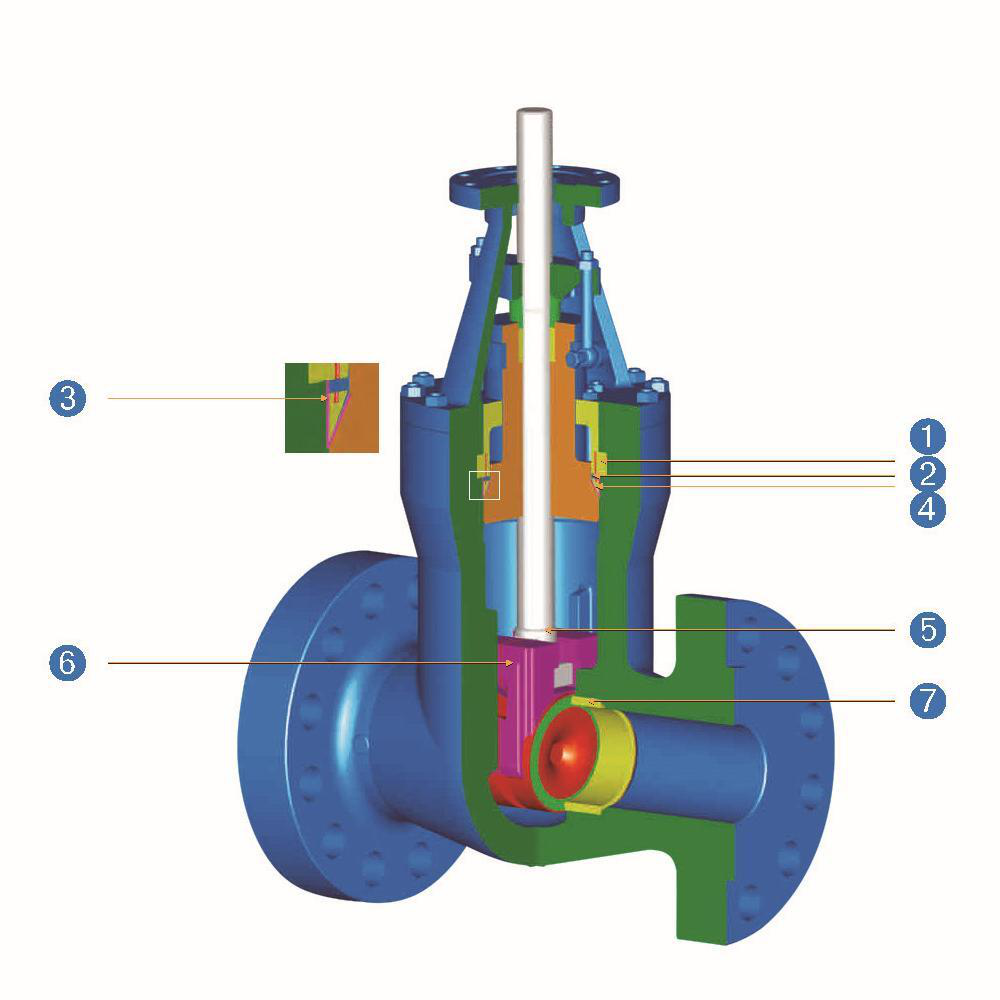

Pressure Seal Bonnet Gate Valve
Pressure Seal Bonnet Gate Valve
