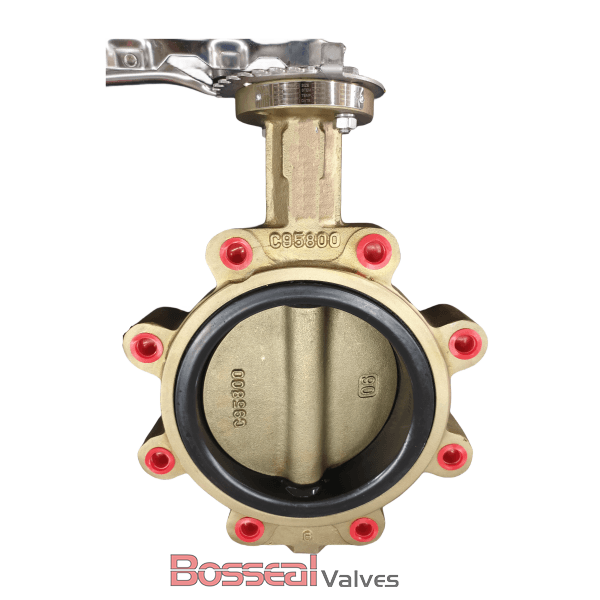

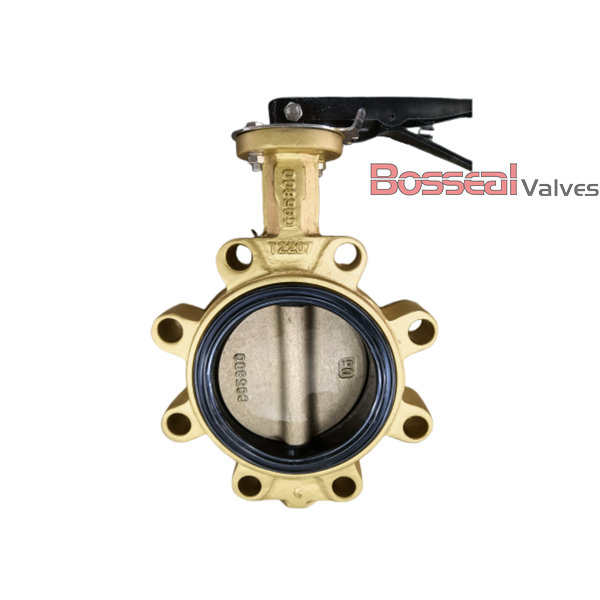

ASTM B148 C95800 Lug Butterfly Valve, 150 LBS, 10 Inches
Model Number: 1862207
Key Specifications / Features
Our factory specializes in double offset butterfly valves, designed to meet rigorous standards such as EN 593 and API 609. Crafted from ASTM B148 C95800 aluminum bronze, these 10-inch valves feature a double eccentric design for superior performance. With a 150 LB rating and a durable 17-4PH stainless steel stem, they offer exceptional sealing and reliability in demanding applications. Engineered for high durability and efficient operation, our valves are ideal for various industrial needs.
Detail Information
EN 593 Double Eccentric Butterfly Valve, 10 Inch/DN250, 150 LB, Double Offset.
Structure: Double Offset, Double Eccentric
Design Standard: EN 593, API 609 Category B
Nominal Size: 10 Inch, DN250
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Normal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
Valve Description
1862207 High-Performance Butterfly ValveStructure: Double Offset, Double Eccentric
Design Standard: EN 593, API 609 Category B
Nominal Size: 10 Inch, DN250
Nominal Class: Class 150 LB, PN16
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM B148 C95800, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Bosseal Valve advantages: 0 Leakage, low Torque, Long working life, Low Emission, Bi-direction and Fire Safe
