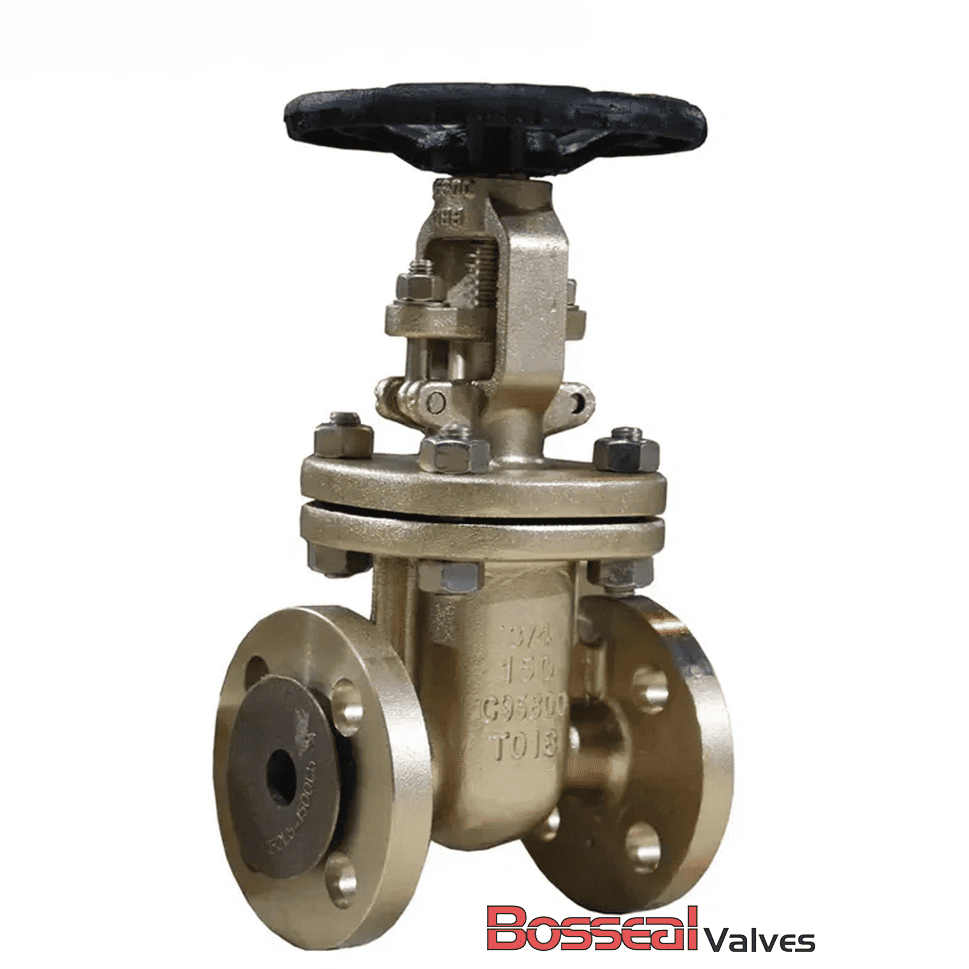

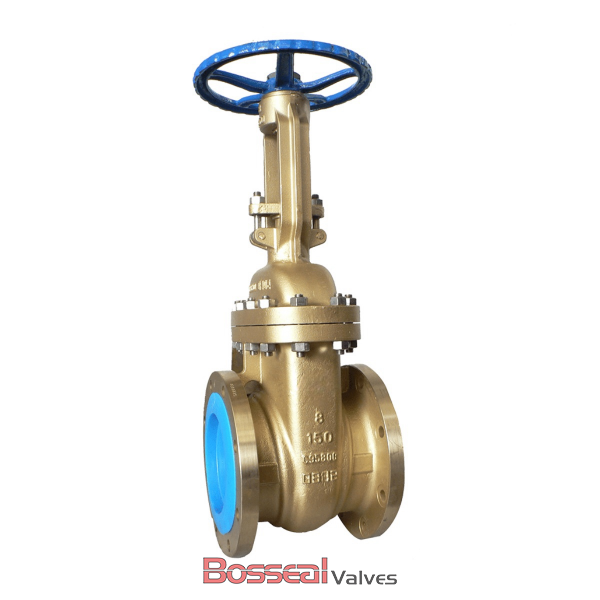

ASTM B148 C95800 Gate Valve, 10 Inch, 150 LB, RF Flanged
Model Number: 1821049
Key Specifications / Features
Our aluminum bronze gate valves, adhering to API 600 standards, are crafted from ASTM B148 C95800 for superior strength and corrosion resistance. Designed for 10-inch (DN250) applications, these valves operate at Class 150 LB and PN10 pressure ratings. Featuring RF flanged connections and an OS&Y (Outside Screw and Yoke) design, they ensure reliable performance and easy operation. The screwed-in back seat enhances durability and leak protection. As a prominent exporter from China, we provide high-quality valves engineered to meet rigorous industrial standards.
Contact Supplier
Detail Information
10 Inch Gate Valve, ASTM B148 C95800 Body, DN250, 150 LB, RF Flanged.
Design Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM B148 C95800, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A
Nominal Size: 10 Inch, DN250
Nominal Class: 150 LB, PN10
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55
Face to Face: ASME B16.10
Test and Inspection: API 598
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Valve Description
1821049 Gate ValveDesign Standard: API 600
Structure: Bolted Bonnet/Pressure Seal Bonnet
Body Material: ASTM B148 C95800, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A
Nominal Size: 10 Inch, DN250
Nominal Class: 150 LB, PN10
Bore Type: Standard Bore(API 600)
End Connection: RF Flanged
Operation: Handwheel/Gear
Trim Material: ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55
Face to Face: ASME B16.10
Test and Inspection: API 598
Key Features
1. OS&Y (Outside Screw and Yoke) design for reliable operation.2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Product Range
| Body Material: | Carbon Steel, Stainless Steel, Alloy Steel, Aluminum Bronze |
| Normal Diameter: | 2 Inch - 64 Inch (DN50 - DN1600) |
| Pressure Range: | Class 150 LB - 2500 LB |
| End Connections: | RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld) |
| Working Temperature: | -29°C - +400°C |
| Operation: | Handwheel/Gear/Motor |
Bolted Bonnet Gate Valve
