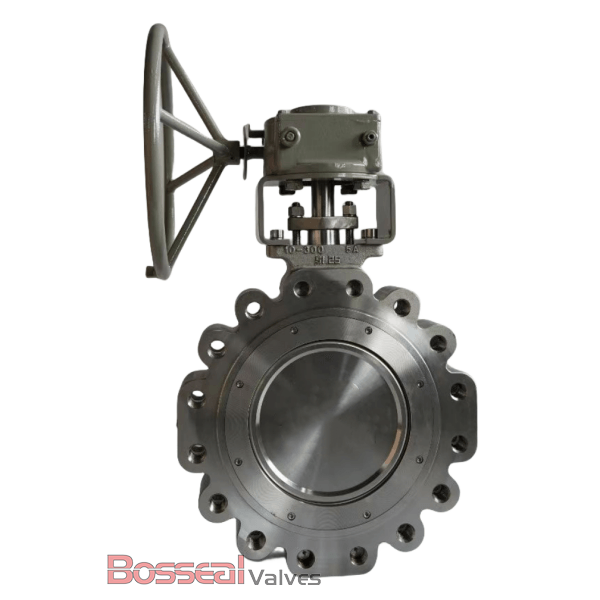

ASTM B148 C95800 Flanged Butterfly Valves, CL 150, 14 IN

Name: ASTM B148 C95800 Flanged Butterfly Valves, CL 150, 14 IN
SKU: 1862251
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As a trusted butterfly valve supplier in China, we offer high-quality double offset butterfly valves designed to API 609 Category B standards. These valves feature a durable ASTM B148 C95800 body, a 17-4PH stem, and a soft RPTFE seat for reliable sealing. With a 14-inch (DN350) size and a 150 LB pressure rating, they are well-suited for a wide range of industrial applications, ensuring efficient flow control and isolation. Our valves are engineered for long-lasting performance and frequent use in demanding environments.

Request a quote

Detail Information

On this page

API 609 Cat B Butterfly Valves, Double Offset, 14 Inch/DN350, Soft Seated, Gear Operation.

Valve Description

1862251 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Nominal Size: 14 Inch, DN350
Nominal Class: 150 LBS, PN16
Seat Type: Soft Seat
Operation: Gear
Structure: Double Offset, Double Eccentric
Body Material: ASTM A351 CF8M, ASTM A890 4A, ASTM B148 C95800, Titanium, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
