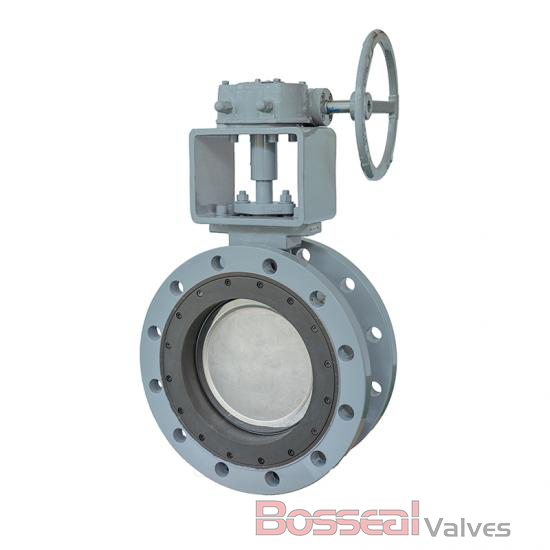

ASTM B148 C95800 Double Offset Butterfly Valve, 10 Inch, 150 LB

Discover our high-performance Bare Shaft Double Offset Butterfly Valve. This valve is made from ASTM B148 C95800 material and is designed for 10-inch pipelines with a 150-lb rating (DN250, PN20). It's built to meet API 609 Cat B standards, featuring a bare stem and ISO 5211 mounting for seamless integration. Trust in our quality for optimal flow control.

DN250 Bare Shaft Double Offset Butterfly Valve, High Performance, API 609, 10 Inch, DN250, 150 LB, Lug, B148 C95800

Valve Description:
1862017 Double Offset Butterfly Valve 10TB1LC958
Design Standard: API 609 Cat B
Structure: Double Offset
Nominal size: 10 Inch
Nominal class: 150 LB
End Connection: lug
Operation: Bare Stem, ISO 5211 Mounting
Body Material: ASTM B148 C95800
Trim Material: ASTM B148 C95800 disc, RPTFE seat
Face to face: API 609
Test and inspection: API 598
Key Features: Long working life for frequient open/close (million cycling), Low torque, Replaceable seat, Tight sealing, Execelent control characteristics, for sea water/off shore

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 48 Inch (DN50 - DN800)
Pressure range: 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
