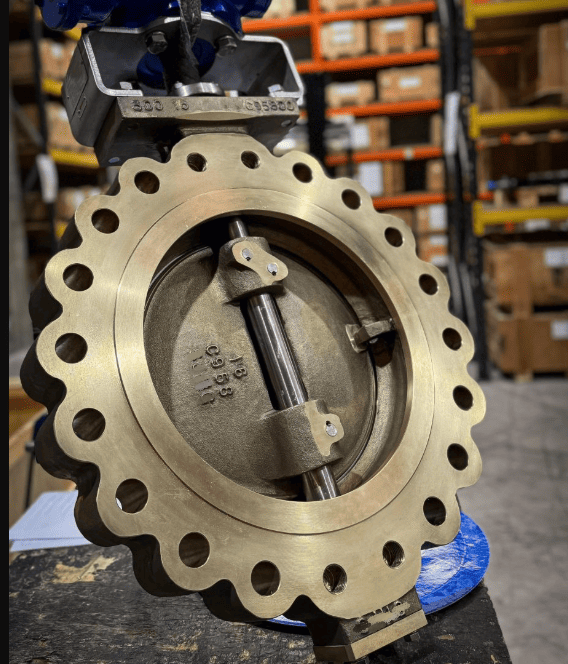

ASTM B148 C95800 Butterfly Valves, BS EN 593, 6 Inch, CL150

Name: ASTM B148 C95800 Butterfly Valves, BS EN 593, 6 Inch, CL150
SKU: BTV-187302005
Availability: InStock
Rating: 5 (4 reviews)

Key Specifications / Features

As a leading aluminum bronze butterfly valve fabricator, we specialize in producing high-performance double offset valves designed to BS EN 593 standards. Built with a durable ASTM B148 C95800 body, a corrosion-resistant Monel K500 stem, and a C95800 disc, our 6-inch Class 150 LB valves deliver reliable flow control in demanding applications. The flanged connection ensures secure installation, while the double offset design enhances sealing performance and reduces wear. Our valves are engineered for longevity, precision, and optimal performance in harsh environments.

Request a quote

Detail Information

Valve Description:
187302005 High Performance Butterfly Valve
Design Standard: API 609 Category B, BS EN 593
Nominal Size: 6 Inch, DN150
Nominal Class: 150 LB
Body Material: ASTM B148 C95800
Seat Type: Soft Seat
End Connection: Wafer/Lug/Flanged
Operation: Lever/Gear
Trim Material: ASTM B148 C95800
Seat: RPTFE, PPL
Structure: Double Offset, Double Eccentric
Face to Face: API 609, BS EN 593
Test and Inspection: API 598, API 609
Key Features: Long working life for frequent operation(million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available, Aluminium bronze for sea water service

Product Range:
Body Material: Aluminium Bronze
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - Class 300 LB
End Connection: Wafer/ Lug/ Flanged
Working Temperature: -26°C - +120°C (180°C for PPL Seat)
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
