ASTM B148 C95800 Butterfly Valve, API 609, CL150, 10 IN
Model Number: 1862375
Key Specifications / Features
We specialize in manufacturing high-quality 10-inch aluminum bronze flanged butterfly valves, rated for Class 150 LB (PN20) and equipped with a soft seat for superior sealing. Crafted from ASTM B148 C95800 material, these valves feature a double offset design, meeting API 609 and EN 593 standards for optimal performance. Engineered for durability and precision, they provide excellent corrosion resistance, making them suitable for a wide range of industrial applications. As a leading butterfly valve manufacturer in China, we are committed to delivering reliable solutions for demanding environments.
Detail Information

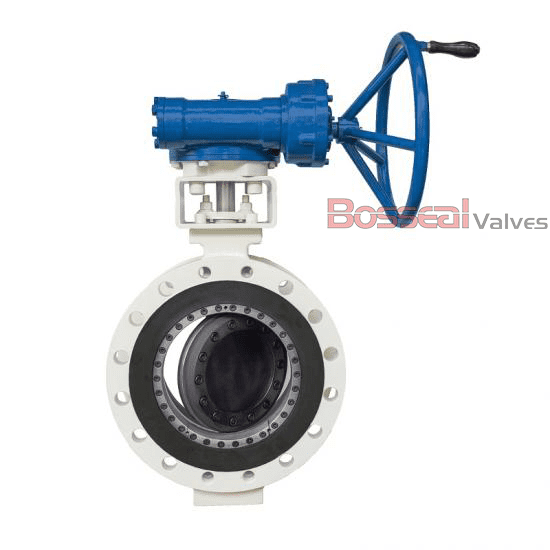

Double Offset Butterfly Valves, 10 Inch, 150 LB, Aluminum Bronze, Monel K500 Stem.
Design Standard: API 609 Category B, EN 593
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Operation: Gear
Nominal Size: 10 Inch, DN250
Nominal Class: Class 150 LB, PN20
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, Titanium, ASTM A890 5A.
Seat: RPTFE, PPL
Test and Inspection: API 598, API 609
Face to Face: API 609, EN 593
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
Top Mounting: ISO 5211 Top Mounting Available
Valve Description
1862375 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
End Connection: Double Flanged
Operation: Gear
Nominal Size: 10 Inch, DN250
Nominal Class: Class 150 LB, PN20
Body Material: ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A216 WCB, ASTM A351 CF8, Titanium, ASTM A890 5A.
Seat: RPTFE, PPL
Test and Inspection: API 598, API 609
Face to Face: API 609, EN 593
Trim Material: ASTM A890 4A, ASTM A890 5A, ASTM A351 CF8, ASTM A351 CF8M, ASTM B148 C95800, Titanium
Key Features: Long working life for frequent operation (million cyclings), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium Alloy.Normal Diameter: 1/2 - 48 Inches (DN15 - DN1200)
Pressure Range: Class 150 - 300 LB
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Seat Type: PTFE, RPTFE, PPL(for higher temperature), RPTF
Top Mounting: ISO 5211 Top Mounting Available
