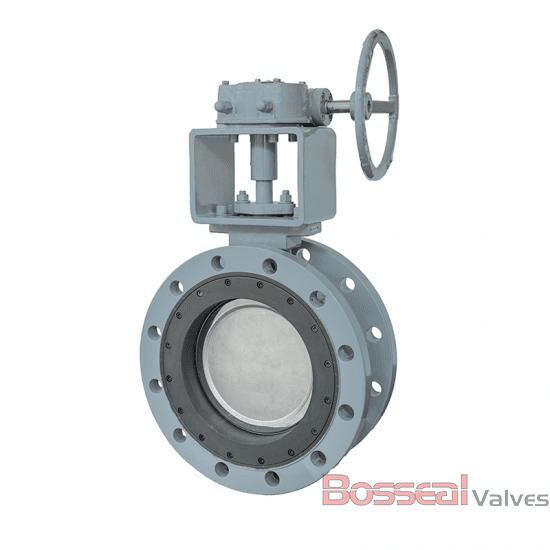

ASTM B148 C95800 Butterfly Valve, 2-1/2 IN, 300 LB, API 609
Key Specifications / Features
As a fabricator of high-performance double-offset butterfly valves, we manufacture valves that comply with API 609 and EN 593 standards. Constructed from ASTM B148 C95800 material, these valves are available in 2-1/2 inches (DN65) with a 150 LB pressure rating. They feature a durable 17-4PH stainless steel stem and an RPTFE seat for reliable sealing and lower torque. With a long working life capable of handling millions of cycles, these valves also offer a replaceable seat and tight sealing for optimal performance in demanding industrial applications.
Request a quote
Detail Information
On this page
EN 593 High-Performance Butterfly Valve, Double Offset, RPTFE Seat, 2-1/2 Inch/DN65, 300 LB, Lever Operation, Lug End.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
CV Value
Flow parameters
Valve Description
1862097 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 2-1/2 Inch, DN65
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Lever
Body Material: ASTM B148 C95800, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A351 CF8, ASTM A890 4A, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
CV Value
Flow parameters
