ASTM B148 C95800 Butterfly Valve, 18 IN, 150 LB, EN 593

Name: ASTM B148 C95800 Butterfly Valve, 18 IN, 150 LB, EN 593
Brand: www.bossealvalves.com
SKU: 1862085
Price: 0.01 USD
Availability: InStock
Rating: 8 (2 reviews)

Model Number: 1862085

Key Specifications / Features

Our aluminum bronze butterfly valve is expertly manufactured to EN 593 and API 609 Category B standards, featuring a double eccentric design for superior performance. With an 18-inch, DN450 size and a 150 LB rating, this valve is equipped with a robust 17-4PH stem and lug ends for secure installation. Ideal for both isolation and regulating applications, it handles frequent operation with ease, making it a reliable choice for demanding pipeline systems. Trust our precision engineering to deliver a valve that meets your high standards.

Class 150 LB Butterfly Valve BS EN 593 Butterfly Valve Lug Butterfly Valve 18 Inch Butterfly Valve ASTM B148 C95800 Butterfly Valve

Contact Supplier

Detail Information

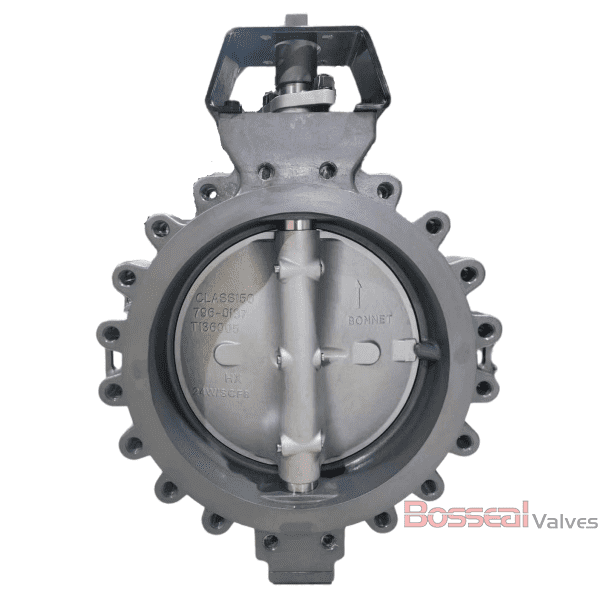

Double Eccentric High-Performance Butterfly Valve, 18 Inch/DN450, 150 LB, RPTFE Seat, Lug Ends.

Valve Description

1862085 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 18 Inch, DN450
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat

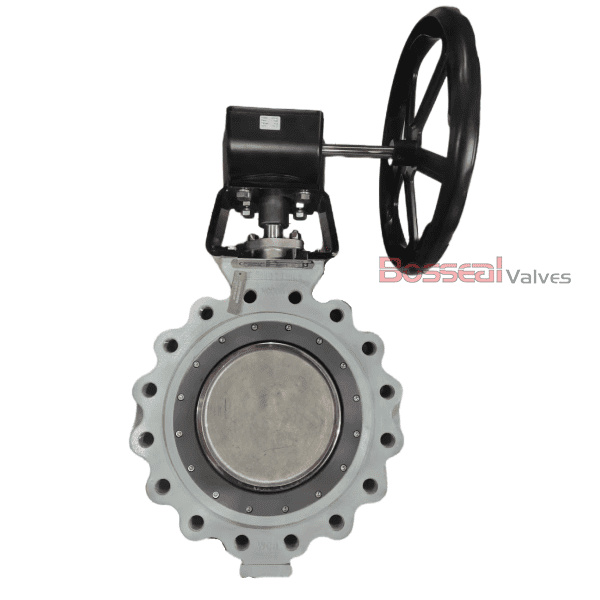

Operation: Gear
Body Material: ASTM B148 C95800, ASTM A890 5A, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium.

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
End Connection: Wafer, Lug, Flanged
Working Temperature: -26°C - +120°C (180°C for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator

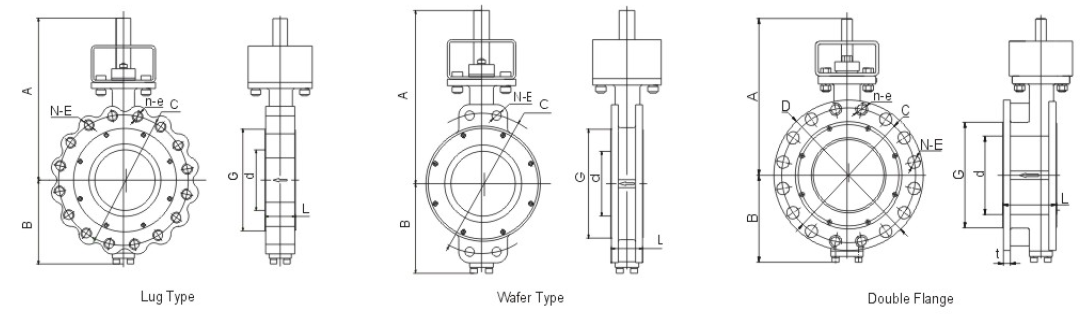

Different End Connections Available

Dead End Service

When the valves need to be installed at end of the pipe and one side no connection with ant pipe/flange, the valve need special design like threaded holes and bi-direction sealing.

Easy Maintenance

The seat is replaceable and can be easily disassembled by loosing the seat retainer with special tools.

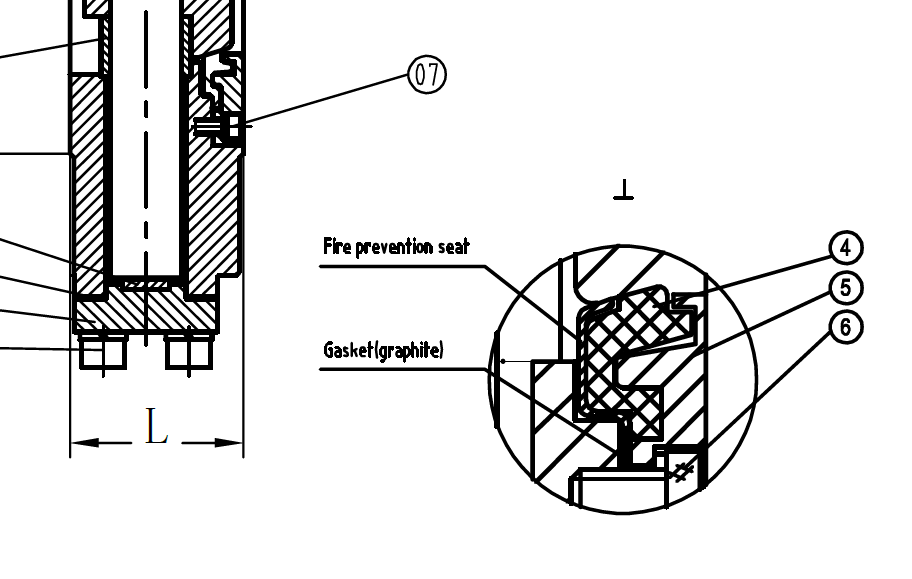

Fire Safe Seat

Fire safe with dual seal including primary soft PTFE seat and secondary metal seat, in event of fire the soft seat is destroyed the metal seat will provide effective shut-off.

Fire Safe Seat
