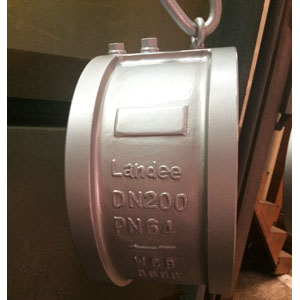

ASTM A995 6A Dual Plate Check Valve, API 594, 8 IN, 1500 LB
Model Number: 8SBS15L6A
Key Specifications / Features
We Provide ASTM A995 6A Dual Plate Check Valves, 8 Inch, DN200, Class 1500 LB, LUG-RTJ End, API 594, Dual Plate Spring Return, Viton Seat, and Low Noise.
Detail Information
1500 LB Lug Type Dual Plate Check Valve, A995 6A, API 594, 8 Inch, 1500 LB, Viton Seat
Valve Description:
Dual Plate Check Valve
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 8 Inch, DN200
Nominal class: 1500 LB, PN250
End Connection: LUG-RTJ
Operation: /
Body Material: ASTM A995 6A
Trim Material: A995 6A disc, X-750 Spring, Viton seat

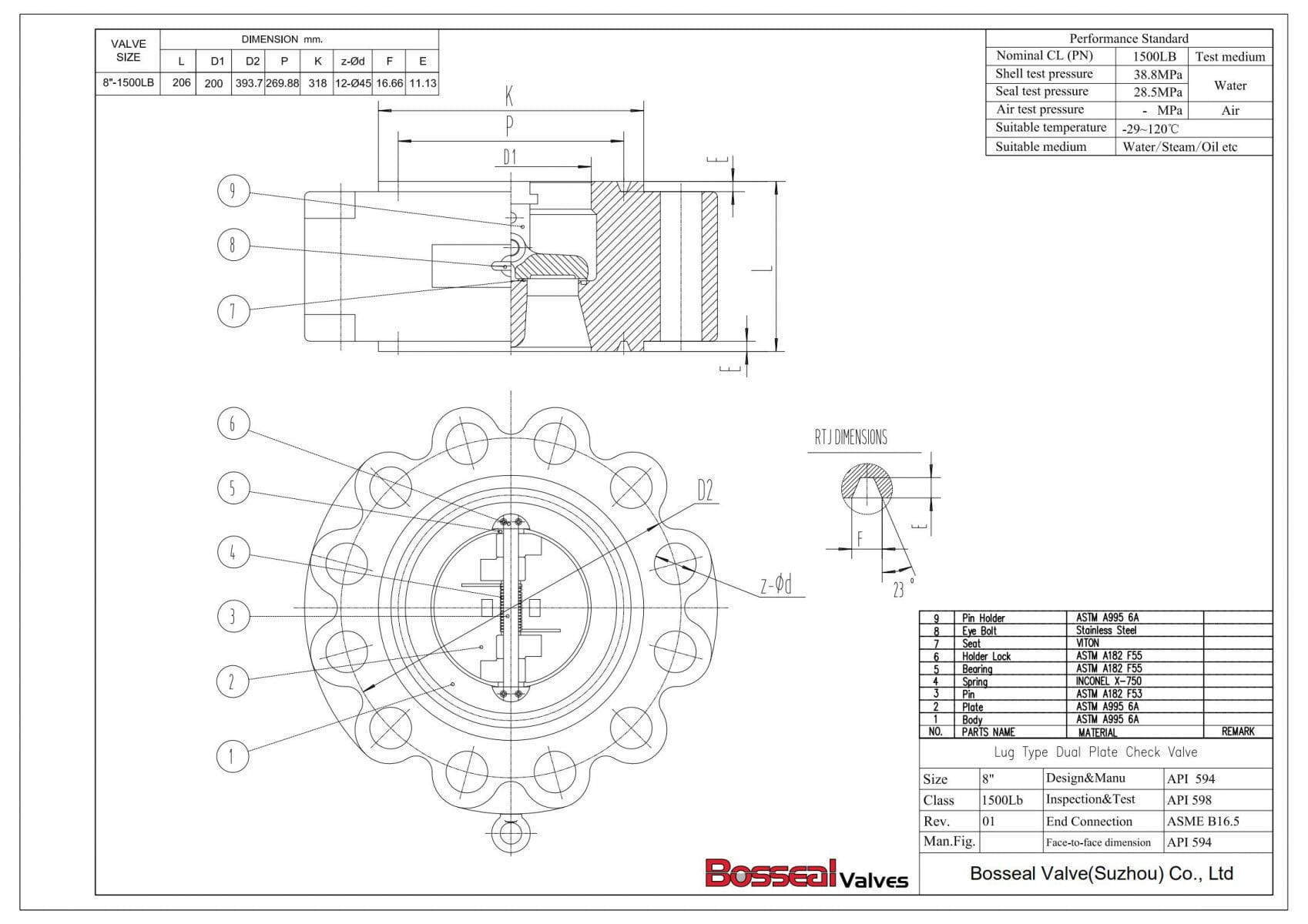

Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, High flow efficiency, Low noise, Short face-to-face length, High Anti-corrosion material, seawater service
Product Range:
Body material: Duplex Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -29℃ - +120℃
Operation: /
Valve Description:
Dual Plate Check Valve
Design Standard: API 594
Structure: Dual Plate spring return
Nominal size: 8 Inch, DN200
Nominal class: 1500 LB, PN250
End Connection: LUG-RTJ
Operation: /
Body Material: ASTM A995 6A
Trim Material: A995 6A disc, X-750 Spring, Viton seat
Face to face: API 594
Test and inspection: API 598
Key Features: Retainerless Design, High flow efficiency, Low noise, Short face-to-face length, High Anti-corrosion material, seawater service
Product Range:
Body material: Duplex Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: Wafer, Lug, Flanged, HUB
Working temperature: -29℃ - +120℃
Operation: /
