ASTM A536 Concentric Butterfly Valve, 6 Inch, 150 LB

Name: ASTM A536 Concentric Butterfly Valve, 6 Inch, 150 LB
Brand: www.bossealvalves.com
SKU: 6T1WDI
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Model Number: 6T1WDI

Key Specifications / Features

We provide Rubber Lined Concentric Butterfly Valves, 6 Inch, DN150, 150 LB, PN16, ASTM A536, Wafer End, API 609 Cat A, EN 593, and Hand Lever Operation.

Concentric Butterfly Valves ASTM A536 Butterfly Valve 6 Inch Butterfly Valve Class 150 LB Butterfly Valve BS EN 593 Butterfly Valve API 609 Cat A Butterfly Valve API 609 Butterfly Valve PN16 Butterfly Valve Wafer Butterfly Valve Ductile Iron Butterfly Valve Rubber Lined Butterfly Valve DN150 Butterfly Valve

Contact Supplier

Detail Information

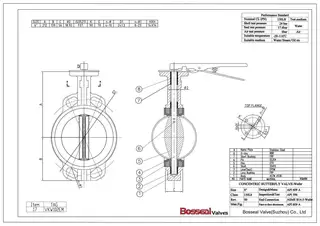

Rubber Lined Concentric Butterfly Valve, 6 inch, 150 LB, PN16, Wafer, ASTM A536 Ductile Iron body, CF8 Disc, EPDM lined seat, Lever Operation

Valve Description:
Concentric Butterfly Valve
Design Standard: API 609 Cat A, EN 593
Structure: Concentric
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN16
End Connection: Wafer
Operation: Hand Lever
Body Material: ASTM A536
Trim Material: A351 CF8 disc, EPDM seat
Face to face: API 609
Test and inspection: API 598
Key Features: Anti-corrosive rubber seat, Low torque, Excellent control characteristics, Economical material and installation space

Product Range:
Body material: Iron, WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: PN6-PN20
End connection: Wafer, Lug, Flanged
Working temperature: -29℃ - +120℃
Operation: Lever, Gear
