ASTM A352 LCB Gate Valve, 2-1/2 IN, 150 LB, Bolted Bonnet
Model Number: 1821044
Key Specifications / Features
Our bolted bonnet gate valves are engineered to meet API 600 standards, crafted from durable carbon steel ASTM A352 LCB. These 2-1/2 inch (DN65) valves are designed for Class 150 LB and PN10 applications, featuring RF flanged connections for secure, leak-proof installation. The non-rising handwheel provides ease of operation, making these valves ideal for a variety of industrial applications. As a leading gate valve manufacturer in China, we guarantee exceptional quality and reliability in every product we deliver.
Detail Information
Carbon Steel Gate Valve, 2-1/2 IN/DN65, 150 LB, Bolted Bonnet, RF Flanged.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Valve Description
| 1821044 Gate Valve | |
| Design Standard: | API 600 |
| Structure: | Bolted Bonnet/Pressure Seal Bonnet |
| Body Material: | ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800 |
| Nominal Size: | 2-1/2 Inch, DN65 |
| Nominal Class: | 150 LB, PN10 |
| Bore Type: | Standard Bore(API 600) |
| End Connection: | RF Flanged |
| Operation: | Handwheel/Gear |
| Trim Material: | ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, F51, F53, F55 |
| Face to Face: | ASME B16.10 |
| Test and Inspection: | API 598 |
Key Features
1. OS&Y (Outside Screw and Yoke) design for reliable operation.2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. Low emission design ensures environmental compliance.

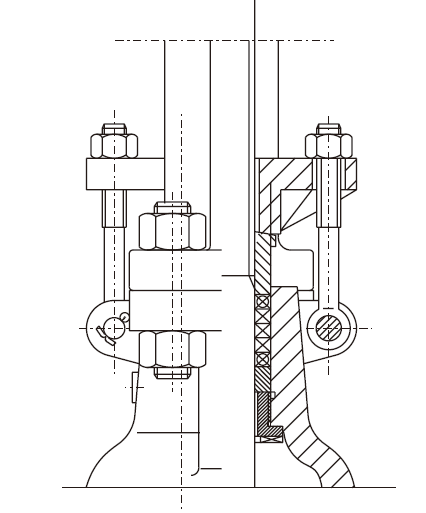

Outside Screw and Yoke(OS&Y)
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum BronzeNormal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
