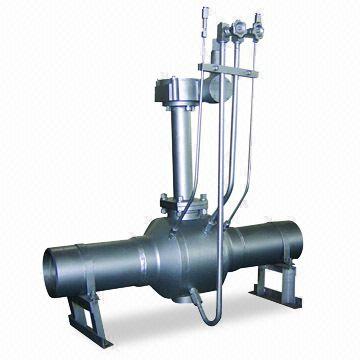

ASTM A351 LF2 Fully Welded Trunnion Ball Valve, 16IN, CL1500

Discover our high-quality Full Welded Trunnion Mounted Ball Valve, designed to API 6D standards. This valve boasts a substantial 16-inch size, with a remarkable pressure rating of 1500 LB. The valve comes with BW+Nipples configuration, along with an extended stem and fitting for enhanced functionality. Crafted with precision, the body is constructed from ASTM A351 LF2 material, while the LF2+ENP Trim further ensures optimal performance. Seamlessly operated by a pneumatic actuator, this valve is engineered to deliver reliable and efficient results across various applications.

Full Welded Trunnion Mounted Ball Valve, API 6D, 16 inch, 1500 LB, BW+Nipples, extended stem and fitting, ASTM A351 LF2 Body, LF2+ENP Trim, pneumatic Actuator

Valve Description:
1811039 Trunnion Mounted Ball Valve 16BW15BLF2
Design Standard: API 6D
Structure: Three pieces forged body, Side Entry, Welded Bonnet, Soft Seat
Nominal size: 16 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: BW + extended Nipples
Operation: pneumatic Actuator
Body Material: ASTM A351 LF2
Trim Material: LF2 + ENP, DEVLON Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
