ASTM A351 CF8M Gate Valve, 4 Inch, 900 LB, OS&Y, API 600
Model Number: 1821109
Key Specifications / Features
We are a premier exporter of stainless steel gate valves, manufactured to ASTM A351 CF8M standards. Our 4-inch (DN100) gate valves are built to API 600 specifications, with a Class 900 LB rating and PN150 pressure capability. Featuring RF flanged connections, an OS&Y design, and a screwed-in back seat, these valves offer robust performance and reliability. As a leading Chinese manufacturer, we pride ourselves on delivering high-quality valves that meet the rigorous demands of global markets.
Detail Information
API 600 Wedge Gate Valve, OS&Y, ASTM A351 CF8M Body, 4 Inch/DN100, 900 LB, RTJ Flanged.
2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. OS&Y (Outside Screw and Yoke) design for reliable operation.
Normal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
Material Types: Steel Gate Valve(cast and forged), Iron Gate Valve
Valve Description
| 1821109 Gate Valve | |
| Design Standard: | API 600 |
| Structure: | Bolted Bonnet/Pressure Seal Bonnet |
| Bore Type: | Standard Bore(API 600) |
| Body Material: | ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, ASTM A352 LCB, ASTM A216 WCB, ASTM A351 CF8. |
| Nominal Size: | 4 Inch, DN100 |
| Nominal Class: | CL 900 LB, PN150 |
| Operation: | Handwheel/Gear |
| Trim Material: | ASTM A182 F6A, ASTM A182 F304, ASTM A182 F316, ASTM A182 F51, ASTM A182 F53, ASTM A182 F55. |
| Face to Face: | ASME B16.10 |
| Test and Inspection: | API 598 |
| End Connection: | RTJ Flanged |
Key Features
1. Low emission design ensures environmental compliance.2. Screwed-in back seat enhances security.
3. Rising stem with non-rising handwheel for ease of use.
4. Flexible wedge provides superior sealing performance.
5. OS&Y (Outside Screw and Yoke) design for reliable operation.
Outside Screw and Yoke(OS&Y)

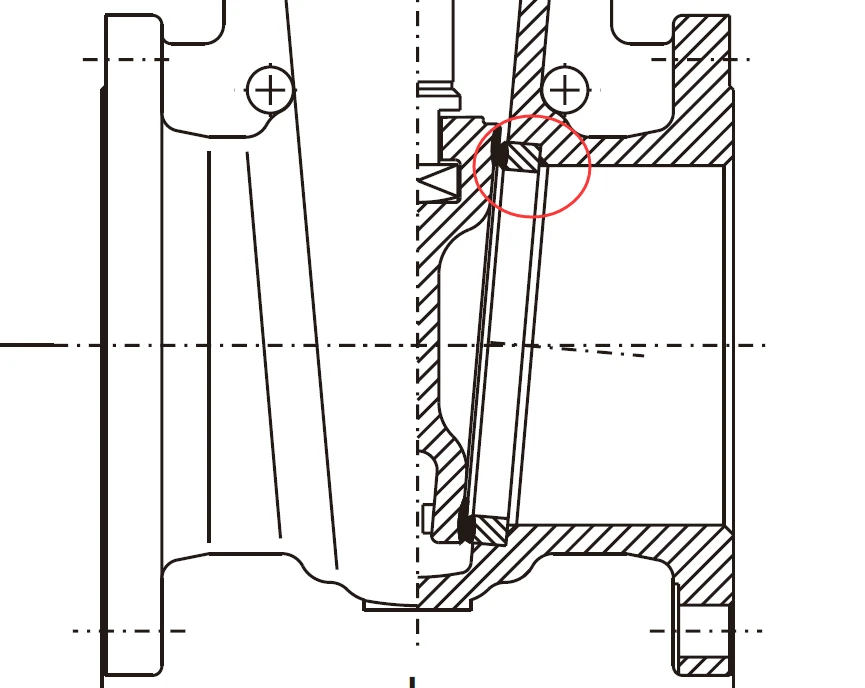

Replaceable Seats
Replaceable Seats
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel, Aluminum BronzeNormal Diameter: 2 Inch - 64 Inch (DN50 - DN1600)
Pressure Range: Class 150 LB - 2500 LB
End Connections: RF (Raised Face), RTJ (Ring-Type Joint), BW (Butt Weld)
Working Temperature: -29°C - +400°C
Operation: Handwheel/Gear/Motor
Bonnet Types: Bolted Bonnet, Pressure Bonnet, Welded Bonnet, Bellow Seal
Material Types: Steel Gate Valve(cast and forged), Iron Gate Valve
