ASTM A351 CF8M Butterfly Valve, RPTFE Seat, 26 Inch, 150 LB
Model Number: 1862088
Key Specifications / Features
Our RPTFE seated butterfly valve, built to EN 593 and API 609 Category B standards, features a robust ASTM A351 CF8M body and a 17-4PH stem. This 26-inch, CL150 valve incorporates a double offset design and lug ends for reliable performance. Engineered for high-frequency operation, it boasts a long lifespan of up to one million cycles. With superior control characteristics, it ensures precise regulation and durability, making it an excellent choice for demanding applications. Trust our manufacturing expertise for a valve that delivers both reliability and efficiency.
Detail Information
High-Performance Butterfly Valve, 26 Inch, DN650, 150 LB, Soft Seat, Lug End, Gear Operation.
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Normal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged
Valve Description
1862088 High-Performance Butterfly ValveDesign Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 26 Inch, DN650
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 5A, ASTM A890 4A, ASTM A351 CF8, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Lug
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumNormal Diameter: 1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range: Class 150 LB - 300 LB
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature: -26°C - +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged

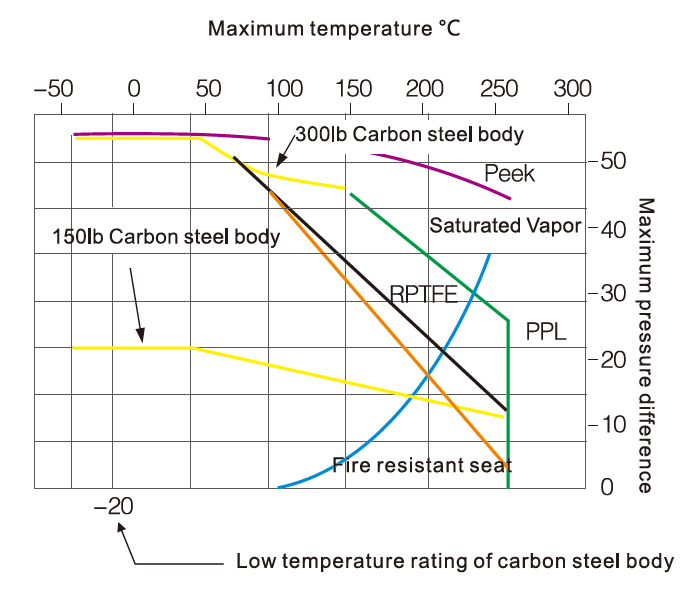

Temperature-Pressure Rating of Seats
