ASTM A351 CF8C Gate Valve, API 600, 603, 2 Inch, 600 LB, RF

Name: ASTM A351 CF8C Gate Valve, API 600, 603, 2 Inch, 600 LB, RF
Brand: www.bossealvalves.com
SKU: 2G6RCF8C
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 2G6RCF8C

Key Specifications / Features

Discover high-quality ASTM A351 CF8C gate valves from a trusted fabricator. These gate valves are designed and manufactured in accordance with API 600 and API 603 standards. With a 2-inch size and a pressure rating of 600 LB, they are suitable for a wide range of industrial applications. The valves feature DN50 and PN100 specifications, ensuring reliable performance in demanding environments. Equipped with an OS & Y design, RF flanged end, flexible wedge, non-rising stem, and handwheel operation, these gate valves provide excellent control and easy handling. Choose our ASTM A351 CF8C gate valves for efficient and durable fluid flow management.

API 600 Gate Valve 2 Inch Gate Valve RF Gate Valve DN50 Gate Valve Class 600 LB Gate Valve PN100 Gate Valve API 603 Gate Valve ASTM A351 CF8C Gate Valve

Contact Supplier

Detail Information

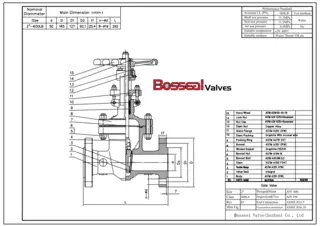

2 inch Class 600 Flanged Gate Valve, API 600, OS & Y, RF, A351 CF8C Body and Trim, Handwheel Operation

Valve Description:
1821018 Gate Valve 2G6RCF8C
Design Standard: API 600, API 603
Structure: Bolted Bonnet
Nominal size: 2 Inch
Nominal class: 600 LB
Bore Type: Standard Bore
End Connection: RF (Raised Face)
Operation: Handwheel
Body Material: ASTM A351 CF8C
Trim Material: ASTM A351 CF8C
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: Carbon Steel, Stainless Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +350℃
Operation: Handwheel, Gear, Motor Actuator
