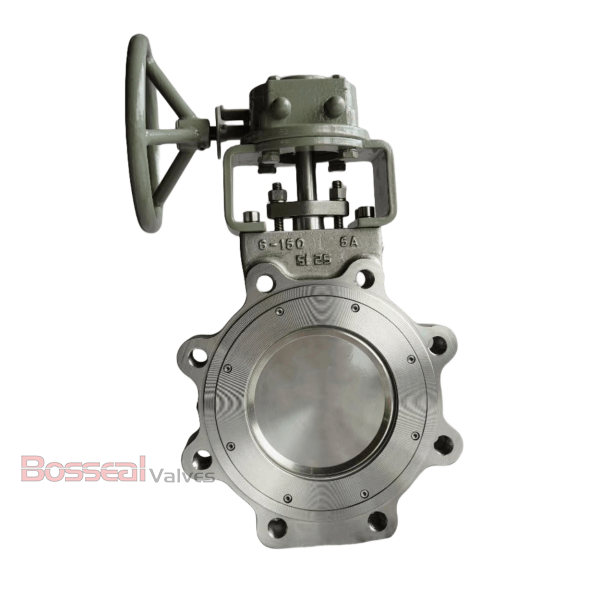

ASTM A351 CF8 Soft Seated Butterfly Valve, 42 Inch, 150 LB
Model Number: 1862304
Key Specifications / Features
As a leading factory for double offset butterfly valves, we offer a 42-inch model that meets API 609 and EN 593 standards. Constructed from stainless steel ASTM A351 CF8, this valve features a double offset design and is equipped with a soft RPTFE seat for reliable sealing. Rated CL300, it includes wafer ends for straightforward installation. Engineered for durability and high performance, this valve is ideal for demanding applications where robust, long-lasting operation is essential.
Detail Information
API 609 Category B Soft Seated Butterfly Valve, EN 593, ASTM A351 CF8, Double Eccentric.
Design Standard: API 609 Category B, EN 593
Body Material: ASTM A351 CF8, ASTM A216 WCB, Titanium, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A.
Nominal Size: 42 Inch, DN1050
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 IN - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Valve Description
1862304 High-Performance Butterfly ValveDesign Standard: API 609 Category B, EN 593
Body Material: ASTM A351 CF8, ASTM A216 WCB, Titanium, ASTM B148 C95800, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A.
Nominal Size: 42 Inch, DN1050
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Structure: Double Offset, Double Eccentric
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Operation: Gear
Seat: RPTFE, PPL
End Connection: Wafer
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 IN - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
