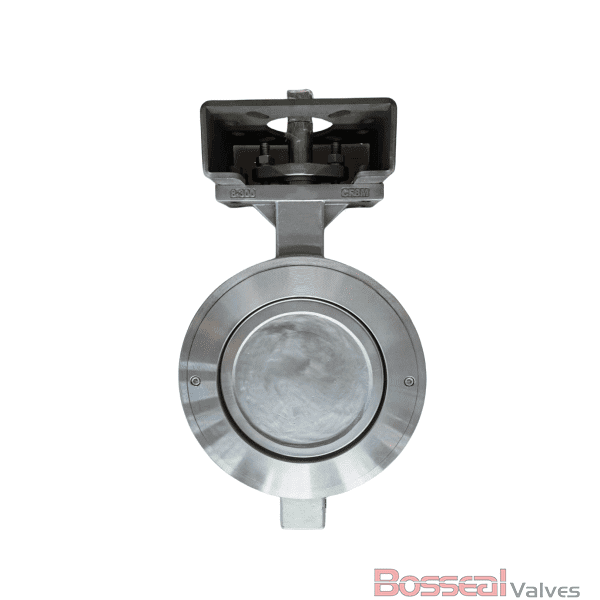

ASTM A351 CF8 Butterfly Valve, Double Offset, 24 IN, 150 LB

Name: ASTM A351 CF8 Butterfly Valve, Double Offset, 24 IN, 150 LB
SKU: 1862129
Availability: InStock
Rating: 5 (1 reviews)

Key Specifications / Features

As an RPTFE seated butterfly valve manufacturer, we offer high-performance valves that meet EN 593 and API 609 Category B standards. Featuring a durable ASTM A351 CF8 body, these 24-inch, CL150 valves are equipped with a 17-4PH stem and a soft seated design for reliable sealing. The double offset configuration ensures efficient operation and extended service life in demanding industrial applications. Our valves deliver precise control and durability, making them ideal for various critical service environments. Trust us for top-quality, high-performance valve solutions.

Request a quote

Detail Information

On this page

High-Performance Butterfly Valve, 24 Inch, DN600, 150 LB, Soft Seat, Double Flanged End, Gear Operation.

Valve Description

1862129 High-Performance Butterfly Valve
Design Standard: EN 593, API 609 Category B
Structure: Double Offset, Double Eccentric
Nominal Size: 24 Inch, DN600
Nominal Class: Class 150 LB, PN20
Seat Type: Soft Seat
Operation: Gear
Body Material: ASTM A351 CF8, ASTM A890 5A, ASTM A351 CF8M, ASTM A216 WCB, ASTM A890 4A, ASTM B148 C95800, Titanium.
Seat: RPTFE, PPL
End Connection: Double Flanged
Face to Face: API 609, EN 593
Test and Inspection: API 598, API 609
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium

Key Features

1. Long lifespan for high-frequency operation (up to a million cycles).
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.

Product Range

Body Material:	Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal Diameter:	1/2 Inch - 48 Inch (DN15 - DN1200)
Pressure Range:	Class 150 LB - 300 LB
Operation:	Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Working Temperature:	-26°C - +120°C (180°C for PPL seat)
End Connection:	Wafer, Lug, Flanged
Seat Types:	Available options include PTFE, RPTFE, PPL (for higher temperatures), and RPTFE+Metal (fire-safe).
Top Mounting:	ISO 5211 top mounting is offered.
Operation Types:	Choose from lever, gear, or pneumatic actuator options.
Bosseal Valve Advantages:	Our valves feature zero leakage, low torque, long service life, low emissions, bi-directional sealing, and fire-safe capabilities.
