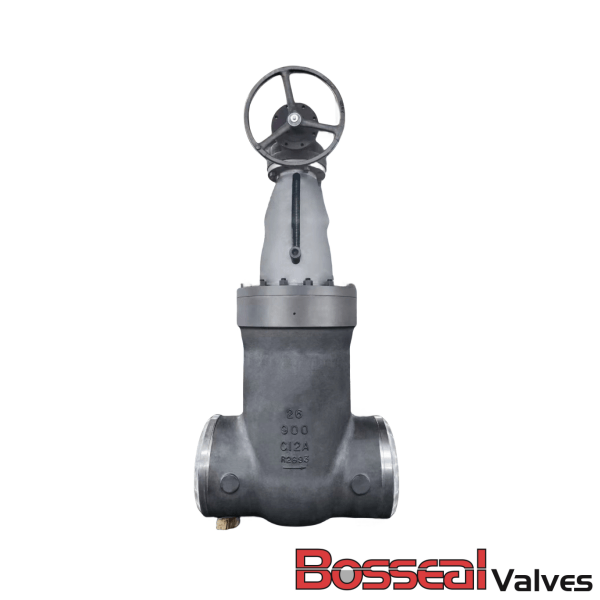

ASTM A217 C12A Gate Valve, Pressure Seal, 26IN, 900 LB, BW

Name: ASTM A217 C12A Gate Valve, Pressure Seal, 26IN, 900 LB, BW
Brand: www.bossealvalves.com
SKU: 26GPS9BC12A
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 26GPS9BC12A

Key Specifications / Features

Discover high-quality ASTM A217 C12A gate valves at our factory, available in a size of 26 inches (DN650) with a Class 900 LB (PN150) rating. Designed to API 600 standards, these valves feature a pressure seal bonnet and gear operation for efficient control. Crafted with ASTM A182 F91+STL trim, they ensure durability and reliability. Perfect for various applications with their butt weld (BW) end connection.

API 600 Gate Valve 26 Inch Gate Valve Class 900 LB Gate Valve

Detail Information

Pressure Seal Gate Valve, API 600, OS&Y, 26 inch, 900 LB, BW, A217 C12A Body, F91 Trim, Gear Operated

Valve Description:
1821035 Gate Valve 26GPS9BC12A
Design Standard: API 600
Structure: Pressure Seal Bonnet
Nominal size: 26 Inch
Nominal class: 900 LB
Bore Type: Standard Bore
End Connection: Butt Weld
Operation: Gear
Body Material: ASTM A217 C12A
Trim Material: F91+STL
Face to face: ASME B16.10
Test and inspection: API 598
Key Features: Flexible Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat, For high temperature

Product Range:
Body material: High Temperature Alloy Steel
Normal diameter: 2 - 48 Inch (DN50 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
