ASTM A216 WCB Wafer Butterfly Valve, 16 Inch, 150 LB, API 609

Discover top-quality ASTM A216 WCB Wafer Butterfly Valves at our factory. Available in 16-inch size, 150 LB rating, DN400, and PN20, these valves comply with API 609 Category B and EN 593 standards. Made from durable carbon steel, they feature gear operation and wafer ends, ensuring reliable performance for your industrial needs.

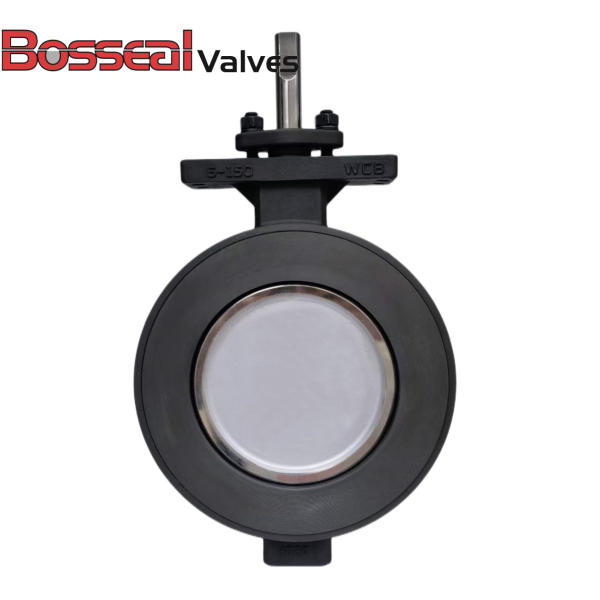

API 609 High Performance Butterfly Valve, 16 INCH, 150 LB, Wafer, ASTM A216 WCB body, 17-4PH stem, CF8M disc, RPTFE seat, Gear Operation

Valve Description:
1862042 High Performance Butterfly Valve
Design Standard: API 609 Category B, EN 593
Structure: Double Offset, Double Eccentric
Nominal size: 16 Inch
Nominal class: 150 LB
Seat Type: Soft Seat
End Connection: Wafer
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium
Seat: RPTFE
Face to face: API 609, EN 593
Test and inspection: API 598, API 609
Key Features: Long working life for frequent operation (million cycling), Lower torque, Replaceable seat, Tight sealing, Excellent control characteristics, Bi-direction sealing under full pressure, fire safe seat available

Product Range:
Body material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, Titanium
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 300 LB
End connection: Wafer, Lug, Flanged
Working temperature: -26℃ - +120℃ (180℃ for PPL seat)
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
