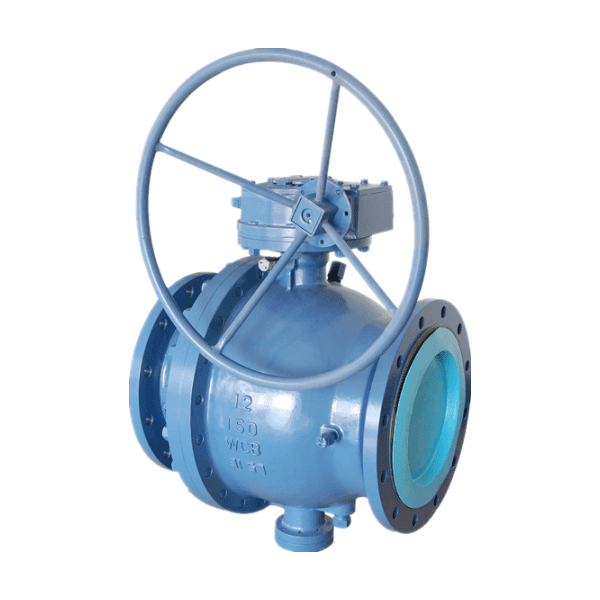

ASTM A216 WCB Two Pieces Trunnion Ball Valve, 20 IN, CL150

Opt for high-quality 20-inch API 6D Casting Steel Trunnion Mounted Ball Valve, designed for reliability and performance. This valve, rated at 150 LB, features an RF connection, WCB body, and F6A trim, ensuring durability and corrosion resistance. Its seamless Gear Operation enhances ease of use. Trust this valve for precision control in critical applications.

Casting Steel Trunnion Mounted Ball Valve, API 6D, 20 inch, 150 LB, RF, WCB body, F6A trim, Gear Operation

Valve Description:
1811041 Trunnion Mounted Ball Valve 20B13RWCB
Design Standard: API 6D
Structure: Two pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch
Nominal class: 150 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: ASTM A182 F6A, RPTFE
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 24 Inch (DN15 - DN1200)
Pressure range: Class 150 - 900 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
