ASTM A216 WCB Triple Offset Butterfly Valve, 6 Inch, 150 LB

Name: ASTM A216 WCB Triple Offset Butterfly Valve, 6 Inch, 150 LB
Brand: www.bossealvalves.com
SKU: 6TC1RWCB
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 6TC1RWCB

Key Specifications / Features

We Provide Triple Offset Butterfly Valves, 6 Inch, Class 150 LB, ASTM A216 WCB, API 609 Cat B, Double Flange, Metal Seat, SS Overlay Seat, and Gear Operation.

PN20 Ball Valve 6 Inch Butterfly Valve Class 150 LB Butterfly Valve API 609 Butterfly Valve DN150 Butterfly Valve ASTM A216 WCB Butterfly Valve API 609 Cat B Butterfly Valve Triple Offset Butterfly Valves Double Flanged Butterfly Valve

Detail Information

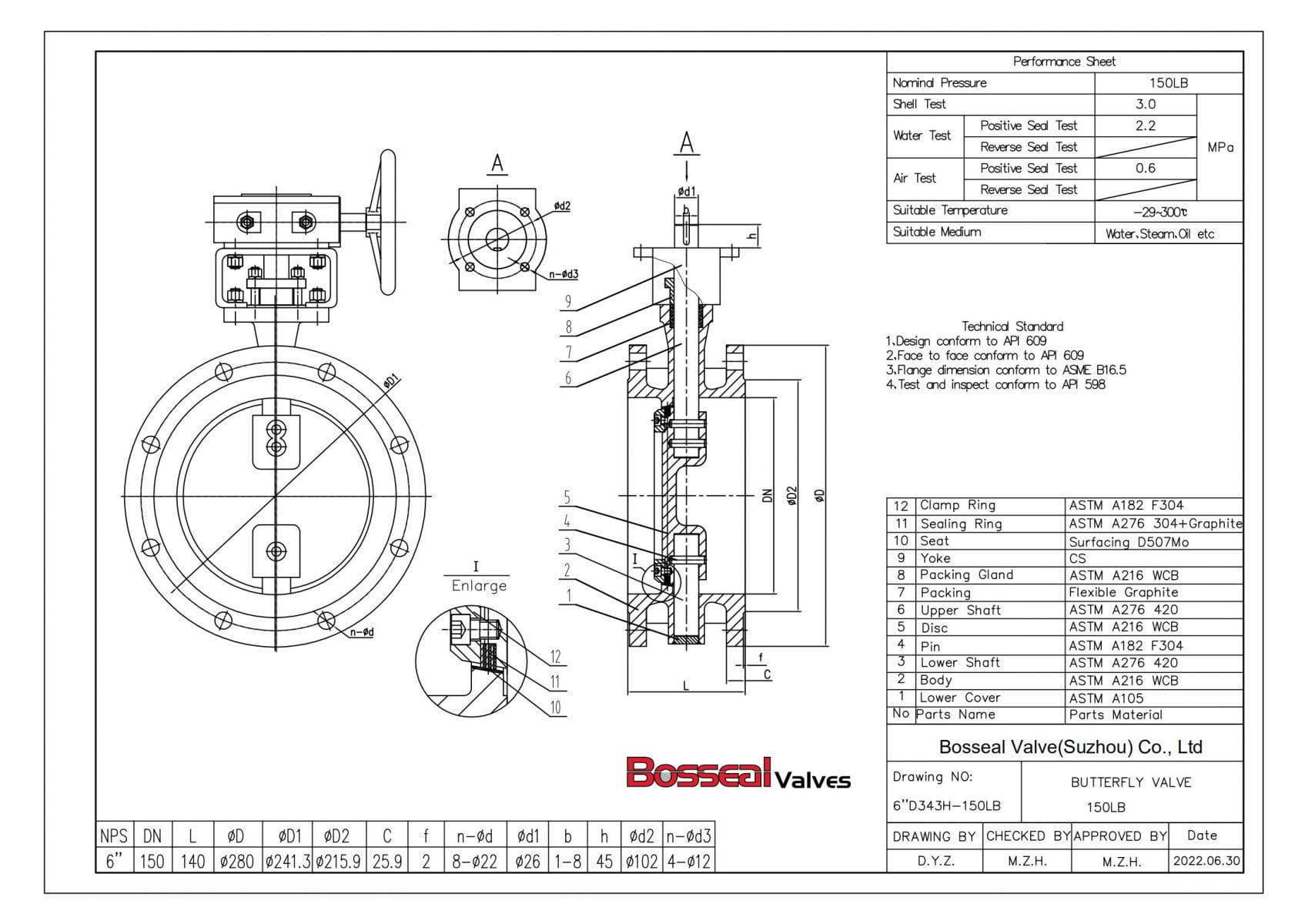

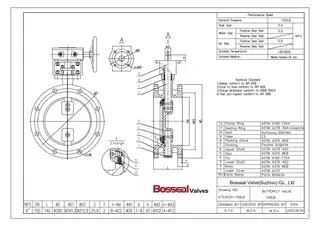

Double Flange Triple Offset Butterfly Valve, Metal Seat, API 609, 6 Inch, 150 LB, WCB body, WCB Disc, SS 304+Graphite Sealing Ring, SS Overlay Seat

Valve Description:
Triple Offset Butterfly Valve
Design Standard: API 609 Cat B
Structure: Triple Offset
Nominal size: 6 Inch, DN150
Nominal class: 150 LB, PN20
End Connection: Double Flange
Operation: Gear
Body Material: ASTM A216 WCB
Trim Material: A216 WCB disc, Laminated Sealing ring SS+Graphite
Face to face: API 609
Test and inspection: API 598
Key Features: Metal Seat for High Temperature and various fluids, Low torque, Replaceable seat, Zero Leakage, Excellent control characteristics, Fire Safe

Product Range:
Body material: WCB, Stainless Steel, Duplex steel, Al-Bronze, Ti
Normal diameter: 2 - 72 Inch (DN50 - DN1800)
Pressure range: 150 - 2500 LB
End connection: Wafer, Lug, Flanged, BW
Working temperature: -29℃ - +400℃
Operation: Lever, Gear, Motor, Pneumatic Actuated
