ASTM A216 WCB Check Valve, 48 IN, CL 300 LB, API 6D, API 594
Model Number: 1842059
Key Specifications / Features
As a leading supplier of API 6D dual plate check valves from China, Bosseal offers 48-inch, Class 300 LB non-return valves made from ASTM A216 WCB, compliant with API 594 standards. These spring-loaded valves are available with wafer or flanged ends. The dual plate valve features a one-piece design without holes through the body, eliminating external pins to retain the disc/stem, and ensuring no external leakage points. This makes it an excellent choice for critical service applications.
Detail Information
API 6D Dual Plate Check Valve, Non-Return Valve, 48 Inch, Class 300 LB, A216 WCB, Wafer/Lug/Flanged.
Design Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 48 Inch
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.
Check Valve Specification
1842059 Dual Plate Check ValveDesign Standard: API 594, API 6D
Structure: Spring Loaded, Dual Plate
Nominal Size: 48 Inch
Nominal Class: Class 300 LB, PN50
Body Material: ASTM A216 WCB, ASTM A351 CF8, ASTM A352 LCB, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Bore Type: /
End Connection: Wafer, Lug, Double Flanged
Operation: /
Trim Material: ASTM A216 WCB, ASTM A352 LCB, ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium Alloy.
Face to Face: API 594
Test and Inspection: API 598
Key Features: Compact Design, Optional Soft and Metal Seat, Independent Spring, Unique Slim Plate Design.
Product Line
| Normal Diameter: | 1/2 Inch - 48 Inch (DN15 - DN1200) |
| Pressure Range: | Class 150 LB - 2500 LB |
| Body Material: | Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel, Al-bronze, Titanium |
| End Connection: | Wafer, Lug, Flanged-RF, RTJ |
| Working Temperature: | -196°C - +450°C |
| Operation: | Not Applicable (Manual or actuated available for special request). |

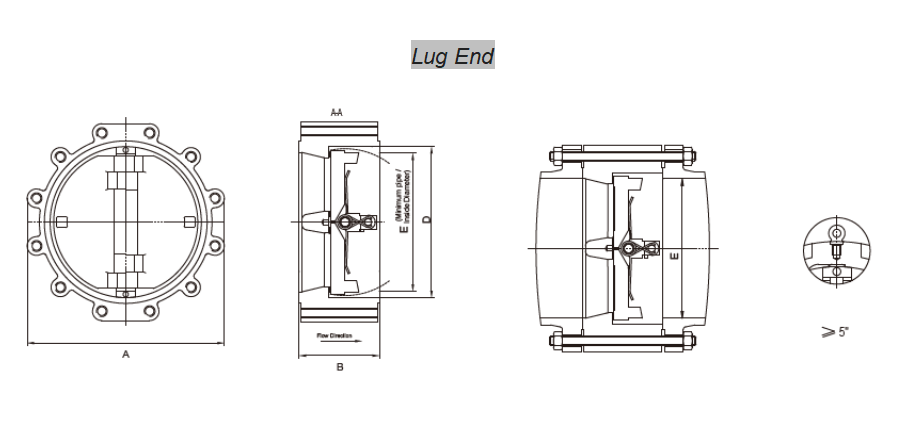

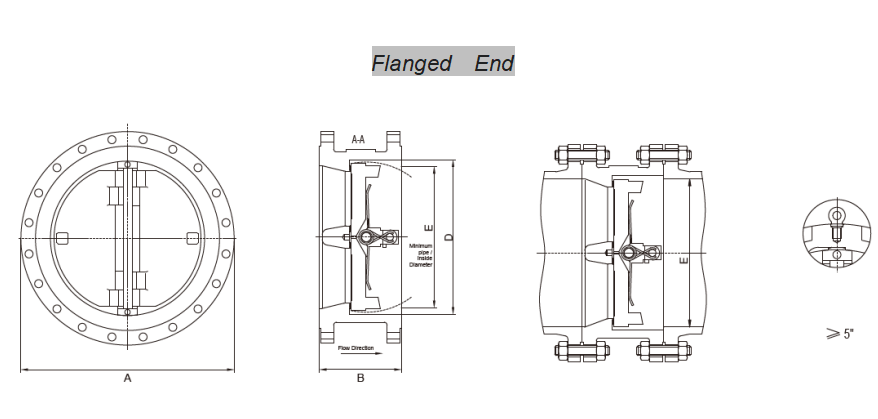

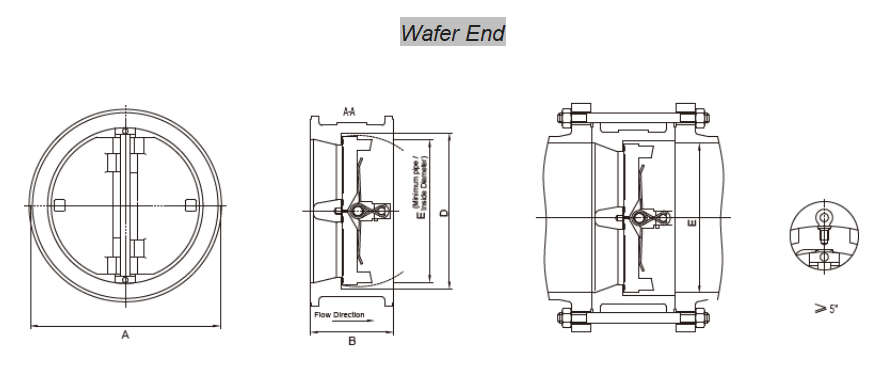

End Connections
