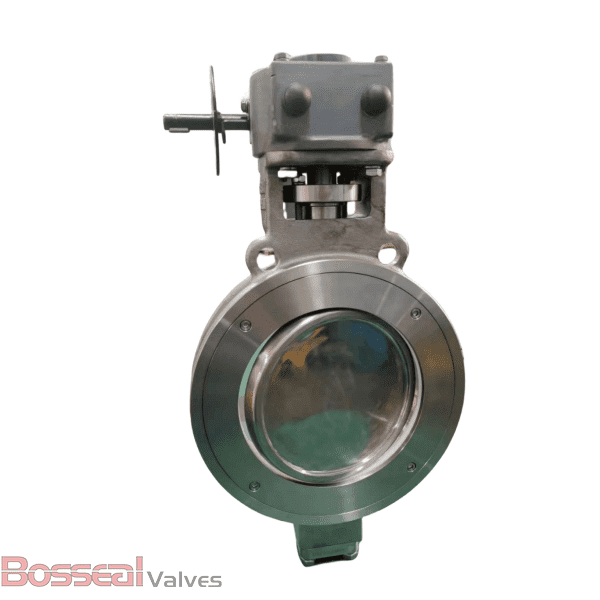

ASTM A216 WCB Butterfly Valve, 30 IN, 150 LB, API 609, EN 593
Model Number: 1862384
Key Specifications / Features
As a leading factory for double offset butterfly valves, we produce high-quality 30-inch valves that meet API 609 and EN 593 standards. Crafted from ASTM A216 WCB material, these valves feature a Monel K500 stem and both soft and RPTFE seats for optimal sealing performance. Rated for Class 150 with flanged ends, our valves are designed for reliability in demanding industrial applications. The double offset design ensures smooth operation and durability, making them an excellent choice for efficient flow control and isolation in various settings. Trust us for exceptional quality and performance.
Detail Information
API 609 Category B Soft Seated Butterfly Valve, EN 593, ASTM A216 WCB, Double Eccentric.
2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 IN - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
Valve Description
A double offset butterfly valve is commonly used in pipelines for isolation and flow regulation, particularly in applications requiring frequent opening and closing. The Bosseal valve offers several key advantages, including zero leakage, low torque operation, and an extended working life. Designed for minimal emissions, these valves feature bi-directional sealing and fire-safe options, ensuring reliable performance in demanding environments.
| 1862384 High-Performance Butterfly Valve | |
| Design Standard: | API 609 Category B, EN 593 |
| Body Material: | ASTM A216 WCB, ASTM A351 CF8, ASTM B148 C95800, ASTM A351 CF8M, Titanium, ASTM A890 4A, ASTM A890 5A. |
| Nominal Size: | 30 Inch, DN750 |
| Nominal Class: | Class 300 LB |
| Seat Type: | Soft Seat |
| Structure: | Double Offset, Double Eccentric |
| Face to Face: | API 609, EN 593 |
| Test and Inspection: | API 598, API 609 |
| Operation: | Gear |
| Seat: | RPTFE, PPL |
| End Connection: | Double Flanged |
| Trim Material: | ASTM A351 CF8, ASTM A351 CF8M, ASTM A890 4A, ASTM A890 5A, ASTM B148 C95800, Titanium |
Key Features
1. Long lifespan for high-frequency operation (up to a million cycles).2. Reduced torque for smoother operation.
3. Replaceable seat for easy maintenance.
4. Reliable tight sealing performance.
5. Superior control characteristics.
6. Bi-directional sealing under full pressure.
7. Fire-safe seat option available.
Product Range
Body Material: Carbon Steel, Stainless Steel, Duplex Steel, Aluminum Bronze, TitaniumOperation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
Normal Diameter: 1/2 IN - 48 Inch (DN15 - DN1200)
Pressure Range: CL 150 - 300 LB
Working Temperature: -26°C to +120°C (180°C for PPL seat)
End Connection: Wafer, Lug, Flanged(FF, RF, RTJ)
Top Mounting: ISO 5211 Top Mounting Available
Operation Types: Lever, Gear, Pneumatic Actuator
