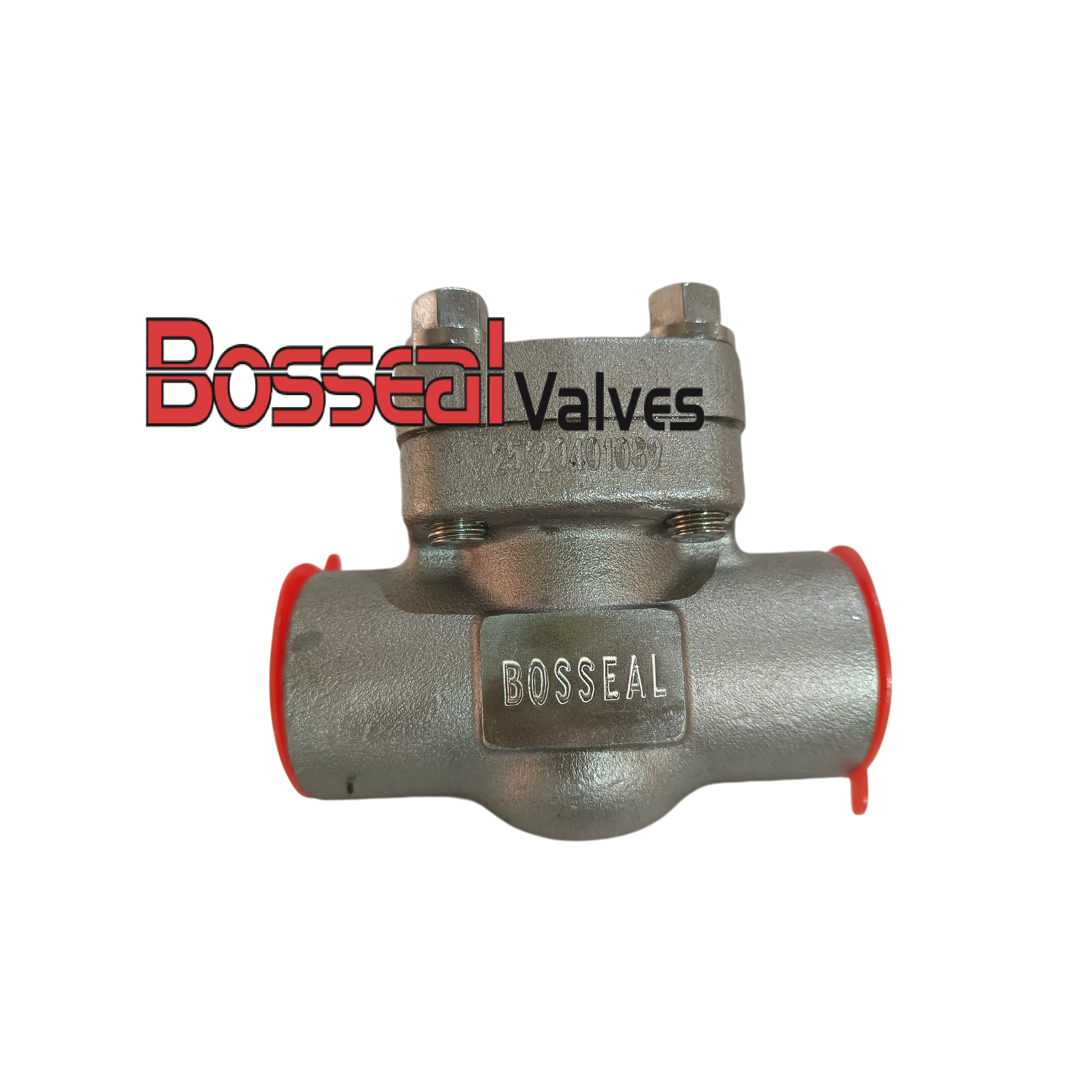

ASTM A182 F316L Piston Check Valve, API 602, 1 Inch, 800 LB
Key Specifications / Features
This forged F316L piston check valve in Class 800 rating blocks backward flow in high-pressure process piping. Its low-carbon stainless steel body delivers outstanding resistance to corrosive fluids, suitable for chemical, petrochemical, and marine service. Clear flow arrow and permanent body stamps support fast on-site identification. Butt-weld ends ensure rigid, leak-tight joints when fitted to matching stainless steel pipework.
Detail Information
Product Type: Piston Check Valve
Nominal Size: 1 Inch, DN25
Pressure Class: Class 800 LB
Body Material: ASTM A182 F316L Forged Stainless Steel
Design Standard: API 602, ASME B16.34
Test standard: API 598
Brand Marking: BOSSEAL
End Connection: Butt-Weld End
Direction Indicator: Flow arrow marked on valve body
Protection: Red plastic end caps to protect weld ends
