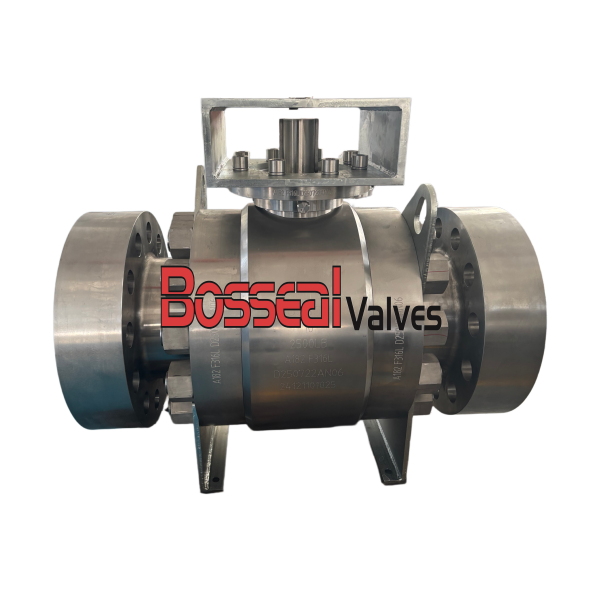

ASTM A182 F316L DBB Trunnion Ball Valve, 10 Inch, 2500 LB
Key Specifications / Features
Detail Information
Valve type: Trunnion-mounted ball valve
Body construction: Three-piece bolted forged construction
Flow path: Full bore
Seat design: Double block and bleed
Operation: Direct stem, actuator mount bracket
Pressure class: Class 2500 LB
Nominal size: NPS10 (DN250)
End connection: Flanged end
Body material: ASTM A182 F316L
Design codes: API 6D, ASME B16.34
Flange standard: ASME B16.5
End-to-end dimension: Complies with API 6D
Ball material options: ASTM A182 F304, ASTM A182 F316, Hard facing available upon request
Seat material options: PTFE, RPTFE, PEEK, Devlon, metal-to-metal
Stem material: ASTM A182 F316
Fastener material: ASTM A193 B7, ASTM A194 2H
Working temperature: -29 Deg C to +180 Deg C, cryogenic service optional
Media service: Natural gas, crude oil, refined oil, process pipeline media
Testing standard: API 6D
Surface coating: Epoxy protective coating
Feature: Body cavity relief, seat sealant injection port
Direct stem trunnion-mounted ball valve fitted with actuator mounting bracket. This Class 2500 high-pressure full-bore DBB ball valve is manufactured from ASTM A182 F316L stainless steel in size NPS10 DN250, suitable for pipelines carrying corrosive fluids in the oil and gas industries.
