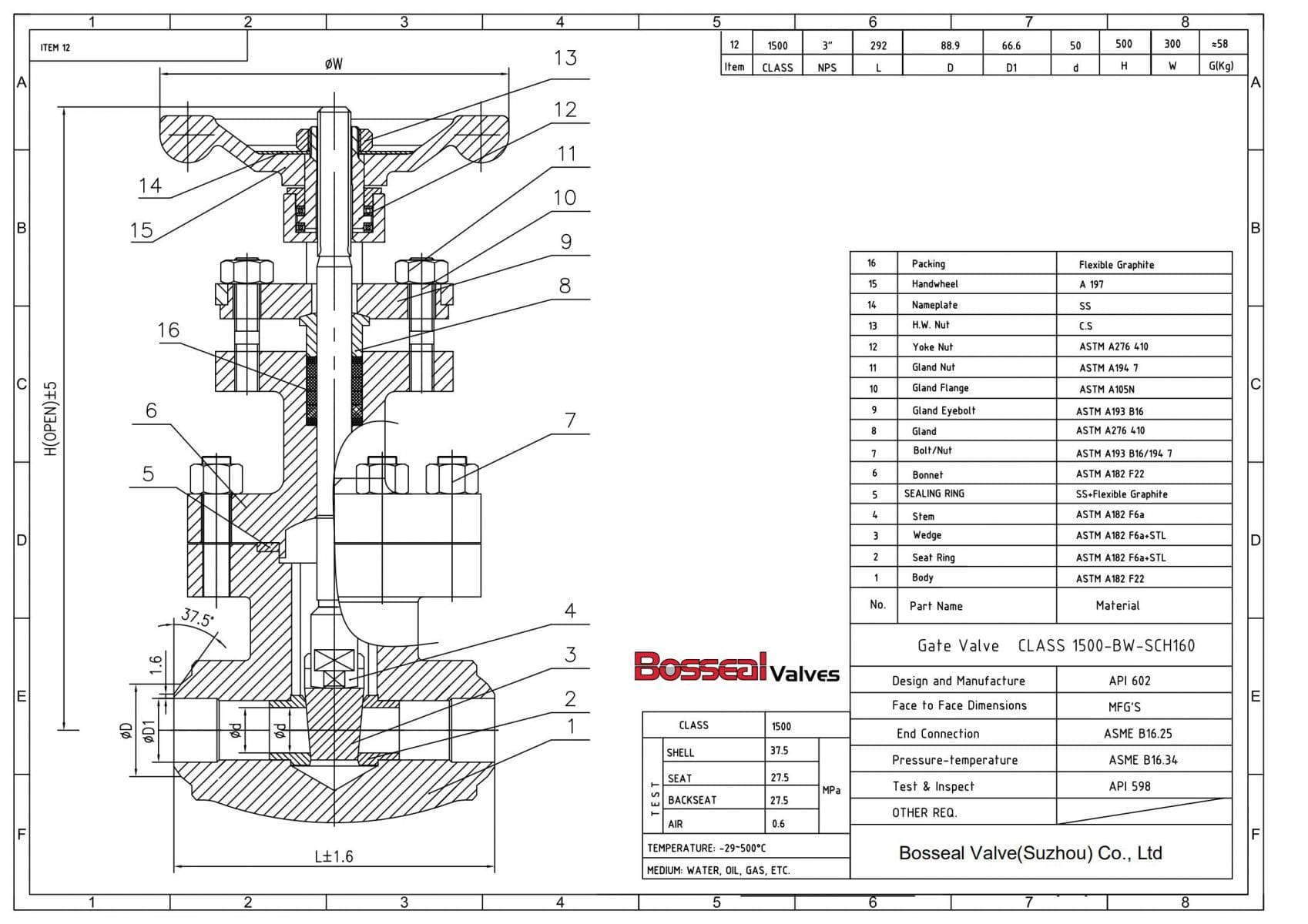

ASTM A182 F22 Wedge Gate Valve, 3 Inch, 1500 LB, API 600, BW
Key Specifications / Features
We Provide Wedge Gate Valves, Forged Body, ASTM A182 F22, Solid Wedge, Bolted Bonnet, 3 Inch, 1500 LB, DN80, PN250, API 600, BW Ends, and Handwheel Opt.
Request a quote
Detail Information
Product Item: Wedge Gate Valve
Model No.: 3G15BF2205
Design Standard: API 600
Structure: Bolted Bonnet, Forged Body
Nominal size: 3 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW (Butt Weld)
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: 1Cr13+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Solid Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: C5, WC6, WC9, F11, F22, C12A, F91
Normal diameter: 2 - 24 Inch (DN50 - DN600)
Pressure range: 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
Model No.: 3G15BF2205
Design Standard: API 600
Structure: Bolted Bonnet, Forged Body
Nominal size: 3 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW (Butt Weld)
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: 1Cr13+STL, No.5
Face to face: Manufacturer Standard
Test and inspection: API 598
Key Features: Solid Wedge, OS&Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat
Product Range
Body material: C5, WC6, WC9, F11, F22, C12A, F91
Normal diameter: 2 - 24 Inch (DN50 - DN600)
Pressure range: 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
