ASTM A182 F22 Gate Valve, 3 Inch, 1500 LB, ASME B16.34

Name: ASTM A182 F22 Gate Valve, 3 Inch, 1500 LB, ASME B16.34
Brand: www.bossealvalves.com
SKU: 3G15BF2205
Price: 0.01 USD
Availability: InStock
Rating: 4 (1 reviews)

Model Number: 3G15BF2205

Key Specifications / Features

Looking for a high-temperature and pressure gate valve? Look no further than our factory, which specializes in producing valves made of ASTM A182 F22 material. Our gate valves have a diameter of 3 inches, are DN80 rated, and can handle pressures up to 1500 LB and PN250. We conform to API 602 and ASME B16.34 standards and offer a bolted bonnet design, trim 5, and a BW end with a handwheel for easy operation. Choose our gate valves for reliable performance in even the toughest conditions.

Bolted Bonnet Gate Valve BW Gate Valve Class 1500 LB Gate Valve PN250 Gate Valve DN80 Gate Valve 3 Inch Gate Valve ASTM A182 F22 Gate Valve API 602 Gate Valve ASME B16.34 Gate Valve

Contact Supplier

Detail Information

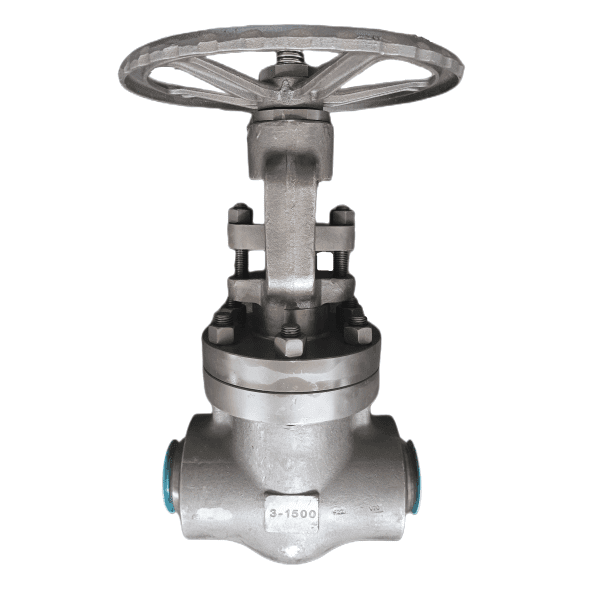

3 Inch 1500 LB A182 F22 Gate Valve for High Temperature & Pressure Service, ASME B16.34, BW End, Trim 5, Handwheel

Valve Description:
1851009 Gate Valve 3G15BF2205
Design Standard: API 602, ASME B16.34
Structure: Bolted Bonnet, Forged Body
Nominal size: 3 Inch
Nominal class: 1500 LB
Bore Type: Standard Bore
End Connection: BW (Butt Weld)
Operation: Handwheel
Body Material: ASTM A182 F22
Trim Material: 1Cr13+STL, No.5
Face-to-face: Manufacturer Standard
Test and inspection: API 598
Key Features: Solid Wedge, OS & Y, Non-rising Handwheel, Low fugitive emission stem packing available, Renewable Seat

Product Range:
Body material: C5, WC6, WC9, F11, F22, C12A, F91
Normal diameter: 2 - 24 Inch (DN50 - DN600)
Pressure range: Class 900 - 2500 LB
End connection: RF, RTJ, BW
Working temperature: -29℃ - +500℃
Operation: Handwheel, Gear, Motor Actuator
