ASTM A105N Trunnion Mounted Ball Valve, 20IN, 600 LB, API 6D

Name: ASTM A105N Trunnion Mounted Ball Valve, 20IN, 600 LB, API 6D
Brand: www.bossealvalves.com
SKU: 20BS6RA105
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 20BS6RA105

Key Specifications / Features

This is a 20-inch trunnion mounted ball valve with an API 6D rating and a 600 LB capacity. Its body is made from forged steel with an A105N material composition and features an RF connection type. This valve is ideal for a variety of industrial applications.

ASTM A105N Ball Valve API 6D Ball Valve Class 600 LB Ball Valve Forged Steel Ball Valve Full Bore Ball Valve Three Pieces Ball Valve Side Entry Ball Valve Bolted Bonnet Ball Valve Soft Seated Ball Valve DBB Ball Valve Flanged Ball Valve RF Ball Valve 20 Inch Ball Valve

Detail Information

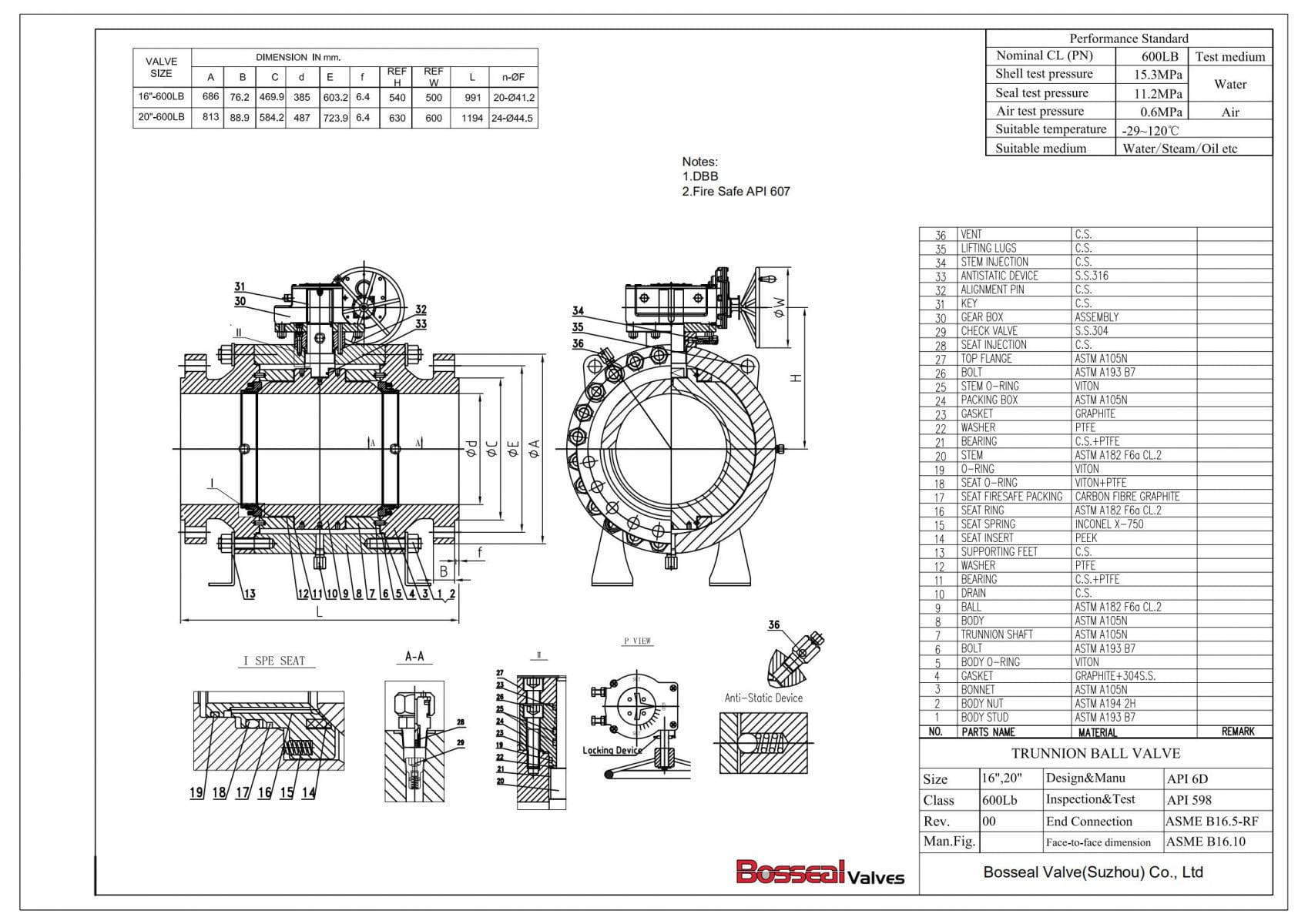

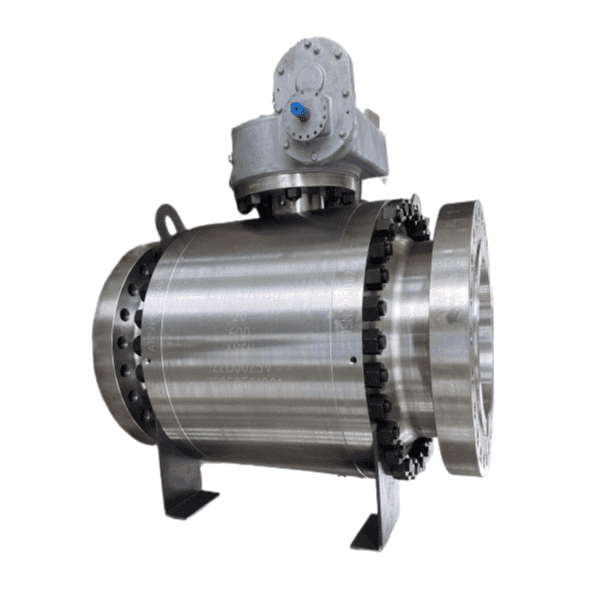

20 Inch Trunnion Mounted Ball Valve, API 6D, 600 LB, RF, Forged Steel, A105N Body

Valve Description:
1811007 Trunnion Mounted Ball Valve 20BS6RA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 20 Inch
Nominal class: 600 LB
Bore Type: Full Bore
End Connection: RF Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F6A, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -26℃ - +150℃
Operation: Manual (lever, gear), Pneumatic Actuator, Motor Actuator
