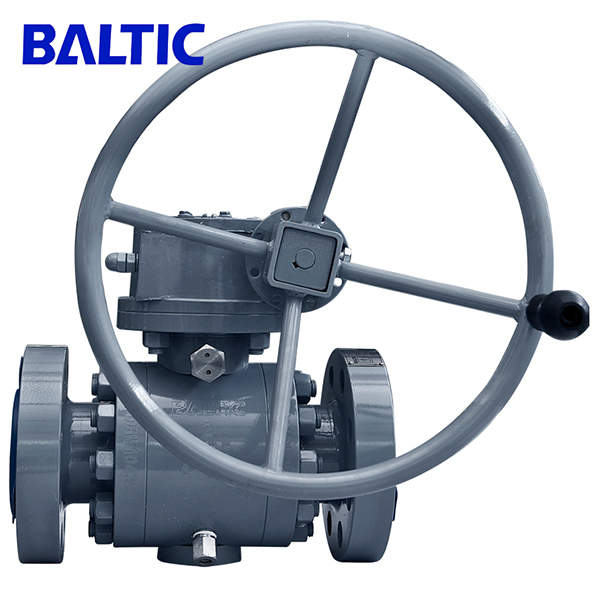

ASTM A105N Trunnion Ball Valve, 2 Inch, 1500 LB, API 6D, RTJ
Model Number: 2BS15JA105
Key Specifications / Features
Detail Information
Trunnion Mounted Ball Valve, API 6D, 2 inch, 1500 LB, RTJ, A105N Body, F316 Trim, PEEK Seat, Gear Operation
Valve Description:
1811054 Trunnion Mounted Ball Valve 2BS15JA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DBB
Nominal size: 2 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
Valve Description:
1811054 Trunnion Mounted Ball Valve 2BS15JA105
Design Standard: API 6D
Structure: Three pieces body, Side Entry, Bolted Bonnet, DBB
Nominal size: 2 Inch
Nominal class: 1500 LB
Bore Type: Full Bore
End Connection: RTJ Flanged
Operation: Gear
Body Material: ASTM A105N
Trim Material: ASTM A182 F316, PEEK
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: DBB, Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection
Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 1/2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -46℃ - +150℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
