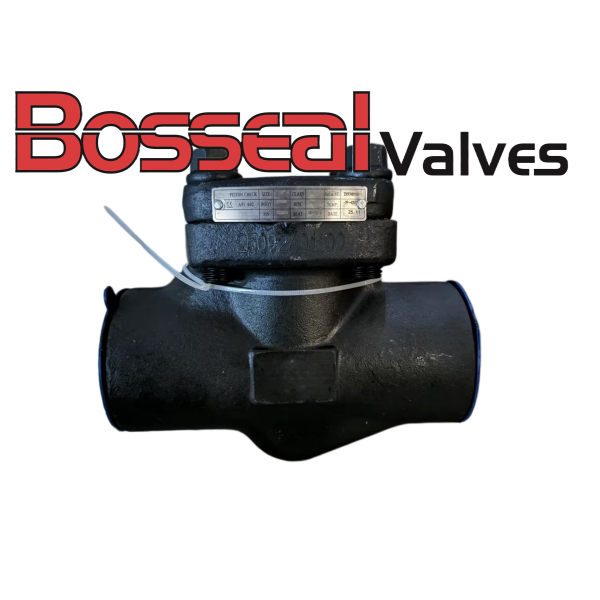

ASTM A105N Piston Check Valve, 2 Inch, 800 LB, API 602, SW
Key Specifications / Features
This forged A105 piston check valve is sized 2 inches with a Class 800 pressure rating, built to API 602 and ASME B16.34 standards, and tested following API 598. It adopts socket weld ends for tight pipe connections. The piston-type internal structure effectively blocks backflow in industrial process pipelines. Made of reliable forged carbon steel, it delivers stable sealing performance under high pressure. It is widely used in utility and process piping systems requiring one-way flow control, with full traceability via engraved serial markings on the valve body.
Detail Information
Product Name: Piston Check Valve
Type: Piston Check Valve
Size: 2 Inch, DN50
Pressure Class: Class 800 LB
Body Material: ASTM A105N (Forged Carbon Steel)
Design Standard: API 602, ASME B16.34
End Connection: Socket Weld (SW)
Test Standard: API 598
Serial No.: YS12509, 251022
Function: Prevent reverse flow of medium in piping system
