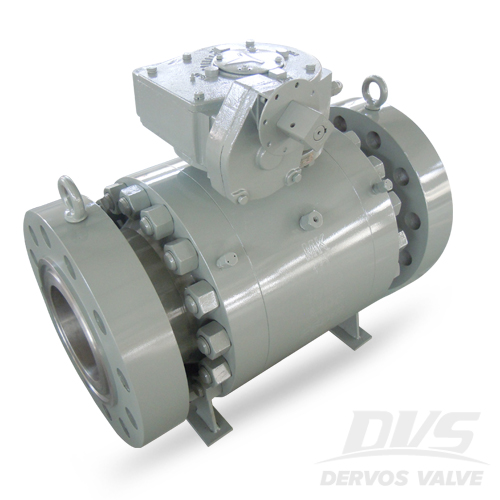

ASTM A105N Ball Valve, Trunnion Mounted, 8 X 6 Inch, 150 LB

Name: ASTM A105N Ball Valve, Trunnion Mounted, 8 X 6 Inch, 150 LB
Brand: www.bossealvalves.com
SKU: 8x6BS1RA105
Price: 0.01 USD
Availability: InStock
Rating: 5 (1 reviews)

Model Number: 8x6BS1RA105

Key Specifications / Features

Discover our high-quality Trunnion Mounted Ball Valve, designed in accordance with API 6D standards. This valve features an 8-inch size and is rated for 150 LB pressure. With a reduced bore design and RF (Raised Face) connection, it offers optimal flow control. The valve body is made from ASTM A105N material, ensuring durability and strength. It is equipped with F6A Trim and RPTFE seat for excellent sealing performance. The gear operation mechanism allows for smooth and effortless valve operation. Explore our Trunnion Mounted Ball Valve today and experience superior quality and reliable performance.

ASTM A105N Ball Valve API 6D Ball Valve Class 150 LB Ball Valve PN20 Ball Valve RF Ball Valve Reduced Bore Ball Valve

Detail Information

Trunnion Mounted Ball Valve, API 6D, 8 inch, 150 LB, Reduced Bore, RF, ASTM A105N Body, F6A Trim, RPTFE Seat, Gear Operation

Valve Description:
1811036 Trunnion Mounted Ball Valve 8x6BS1RA105
Design Standard: API 6D
Structure: Two pieces forged body, Side Entry, Bolted Bonnet, Soft Seat
Nominal size: 8 X 6 Inch
Nominal class: 150 LB
Bore Type: Reduced Bore
End Connection: RF
Operation: Gear Box
Body Material: ASTM A105N
Trim Material: A182 F6A, RPTFE Seat
Face to face: ASME B16.10
Test and inspection: API 598, API 6D
Key Features: Double Block & Bleed (DBB), Anti-static Device, Fire Safe, Anti-Blowout Stem, Emergency sealant injection,

Product Range:
Body material: Carbon Steel, Stainless Steel, Alloy Steel
Normal diameter: 2 - 48 Inch (DN15 - DN1200)
Pressure range: Class 150 - 2500 LB
End connection: RF, RTJ, BW, HUB
Working temperature: -29℃ - +120℃
Operation: Manual(lever, gear), Pneumatic Actuator, Motor Actuator
