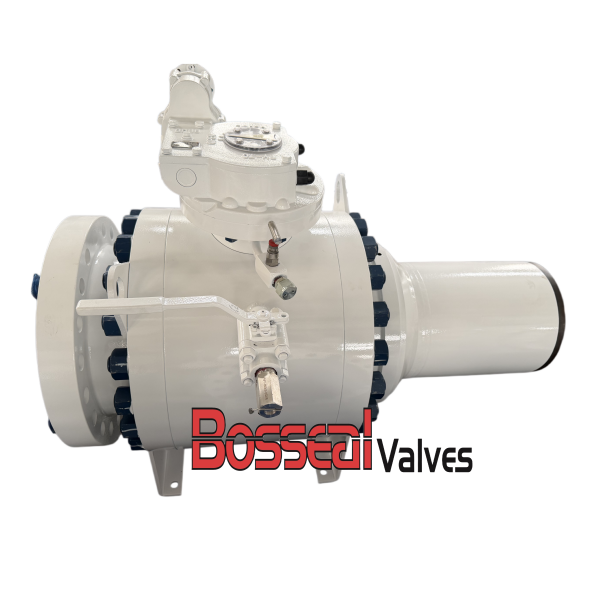

ASTM A105 Three Piece DBB Ball Valve, 12 IN, 600 LB, API 6D
Model Number: 181101006
Key Specifications / Features
Heavy-duty trunnion-mounted ball valve with a three-piece bolted forged body and worm gear operation. This full-bore ball valve provides a double-block-and-bleed function and meets API 6D and ASME B16.34 specifications. It is NPS12 DN300 Class 600 LB with an extended barrel on the outlet side. Multiple material options are available for the body, ball, and seats for oil and natural gas pipeline service. It is equipped with body cavity relief, a seat sealant injection port, and a drain connection, fully tested per API 6D, and protected by an epoxy coating.
Detail Information
Valve type: Trunnion-mounted ball valve with Drain valve and extended barrel
Structure: Three-piece bolted forged body
Operation: Worm gear operated
Bore type: Full bore
Seat function: Double block and bleed
Design standard: API 6D, ASME B16.34
Flange standard: ASME B16.5
Face-to-face dimension: API 6D
Pressure class: Class 600
Nominal size: NPS 12 (DN300)
Body material: ASTM A105, ASTM A105N
Ball material: ASTM A182 F304, ASTM A182 F316, Hard facing optional
Seat material: PTFE, RPTFE, PEEK, Devlon, metal-to-metal optional
Stem material: ASTM A182 F316
Bolt and nut: ASTM A193 B7, ASTM A194 2H
Operating temperature: -29 Deg C to +180 Deg C, cryogenic version available
End connection: Flanged end, extended barrel on outlet side
Feature: Body cavity relief, seat sealant injection port, drain connection
Application: Natural gas, oil, pipeline, process pipeline
Inspection and test: API 6D
Painting: Epoxy coating
Feature: Body cavity relief, seat sealant injection port, body cavity drain valve
Structure: Three-piece bolted forged body
Operation: Worm gear operated
Bore type: Full bore
Seat function: Double block and bleed
Design standard: API 6D, ASME B16.34
Flange standard: ASME B16.5
Face-to-face dimension: API 6D
Pressure class: Class 600
Nominal size: NPS 12 (DN300)
Body material: ASTM A105, ASTM A105N
Ball material: ASTM A182 F304, ASTM A182 F316, Hard facing optional
Seat material: PTFE, RPTFE, PEEK, Devlon, metal-to-metal optional
Stem material: ASTM A182 F316
Bolt and nut: ASTM A193 B7, ASTM A194 2H
Operating temperature: -29 Deg C to +180 Deg C, cryogenic version available
End connection: Flanged end, extended barrel on outlet side
Feature: Body cavity relief, seat sealant injection port, drain connection
Application: Natural gas, oil, pipeline, process pipeline
Inspection and test: API 6D
Painting: Epoxy coating
Feature: Body cavity relief, seat sealant injection port, body cavity drain valve
